Eurotherm 2404F/CC/VH/LH/RR Temperature Controller
Temperature Controller

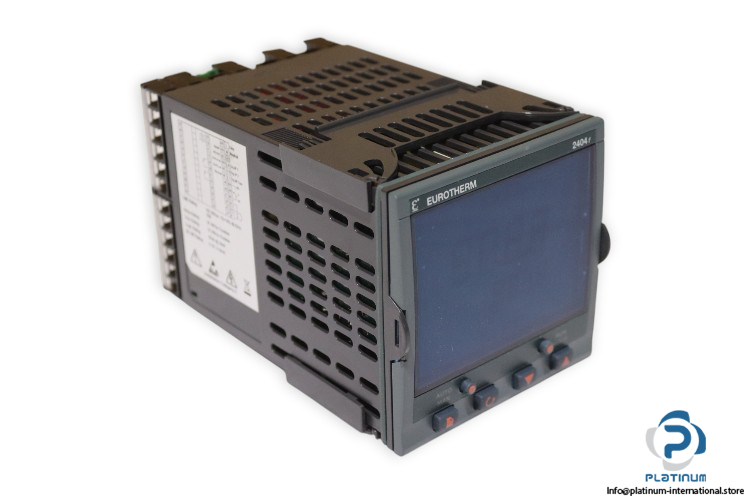

Eurotherm / Schneider Electric 2404F from the 2400 series delivers precise temperature control and programming with multi-line display, relay and triac outputs, and wide supply voltage range.Eurotherm / Schneider Electric 2404F Temperature Controller / Programmer
The Eurotherm / Schneider Electric 2404F is a versatile temperature controller and programmer from the 2400 series. Designed for industrial applications, it provides precise temperature management, reliable relay and triac outputs, and multi-line display for efficient operation. Suitable for process industries requiring programmable control functions with high accuracy.
Manufacturer: Eurotherm / Schneider Electric
Type: Temperature Controller / Programmer

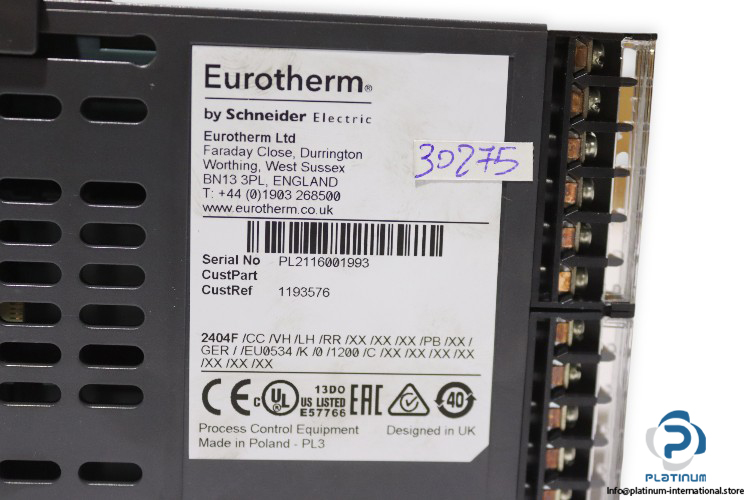

Model: 2404F/CC/VH/LH/RR/XX/XX/XX/PB/XX/GER//EU0534/K/0/1200/C/XX/XX/XX/XX/XX/XX/XX
Code: 929992/10
Serial No.: PL2116001993
Ref. No.: 1193576
Series: 2400 (2404F)

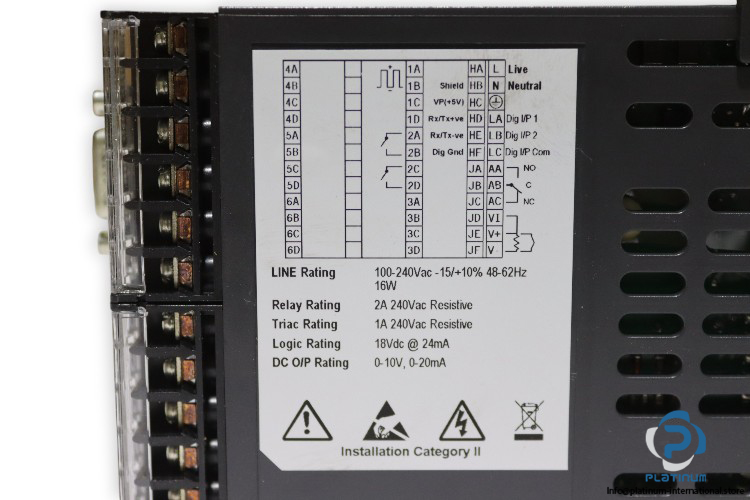

| Line Rating (Power Supply) | 100 to 230 V AC, 48“62 Hz, 16 W |
| Relay Rating | 2 A, 240 V AC resistive |
| Triac Rating | 1 A, 240 V AC resistive |
| Logic Rating | 18 V DC, 24 mA |
| Output Type | Changeover Relay, Relay |

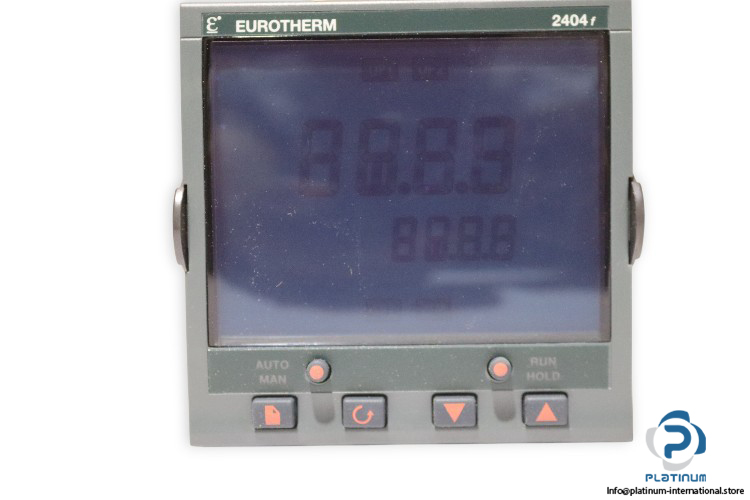

| Display Type | Multi Line |
| Transmitter Contact | 2 NO |
| DC Output | 0“10 V, 0“20 mA |
| Product/Manual Language | German |
