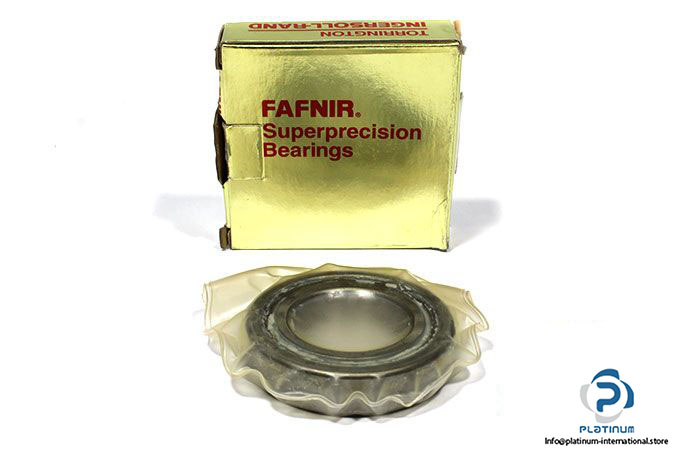

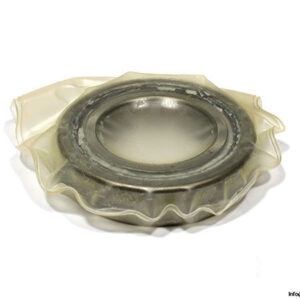

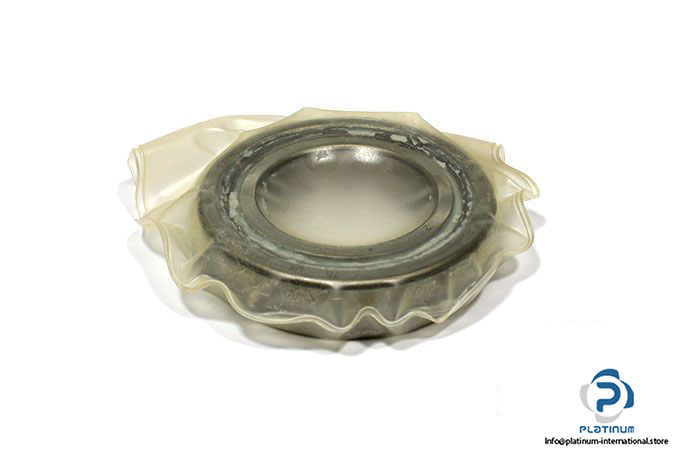

Fafnir 2MMV9108WICRDUL Super Precision Angular Contact Ball Bearing
Manufacturer: FAFNIR
Type: Spindle Angular Contact Ball Bearing

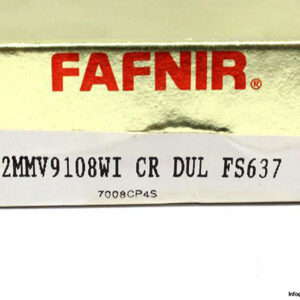

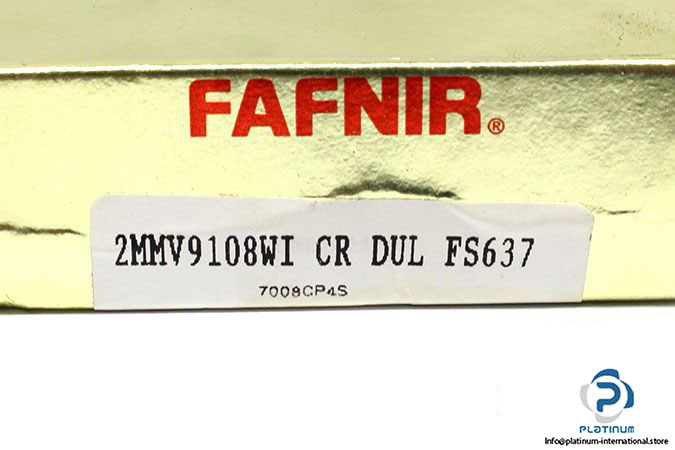

Model: 2MMV9108WI CR UL
Replaces: 7008 CP4S

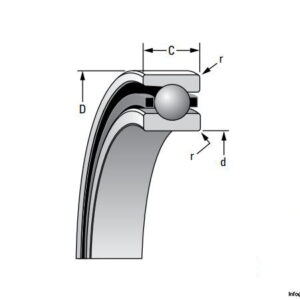

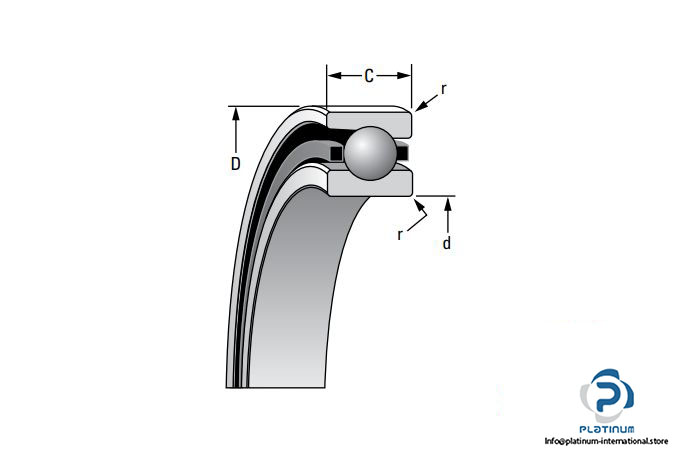

Dimensions
Bore Diameter d: 40 mm
Outer diameter D: 68 mm
Width C: 15 mm
Contact angle α: 15 °
Mounting: Duplex pairs of bearings
Basic load ratings:
Dynamic Cr: 14900 N
Static C0r: 21900 N
Speed Rating (single, grease lubricated): 19900 RPM
Operating Speed (DUL):
Grease: 15900 RPM
Oil: 27000 RPM
Preload (DUL): 90 N
Cage: phenolic cage
