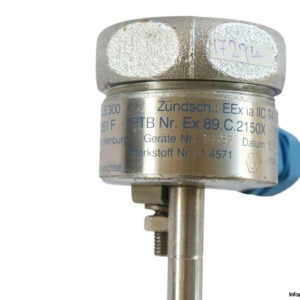

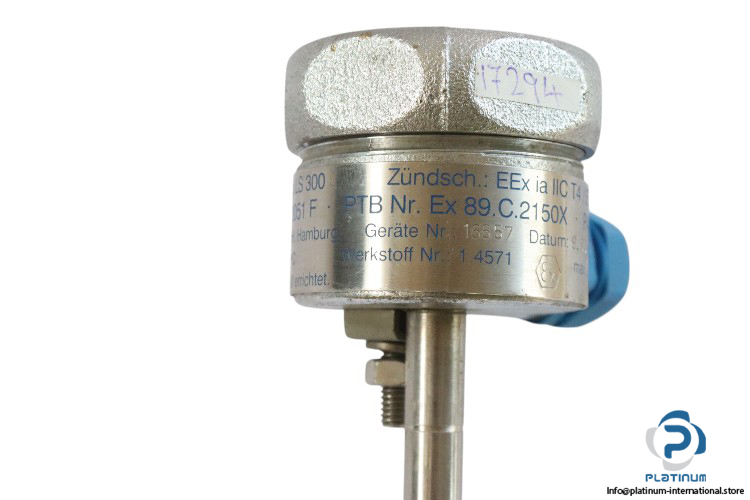

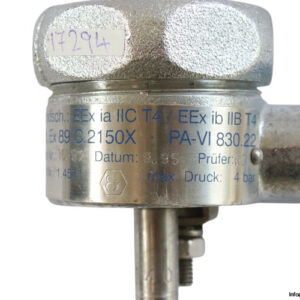

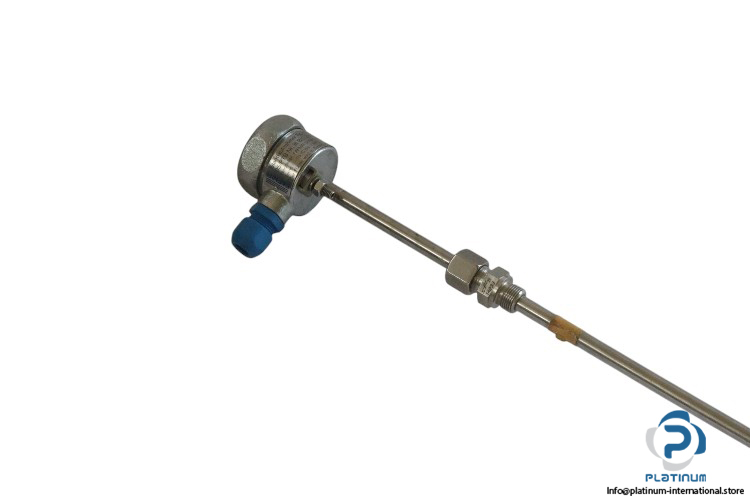

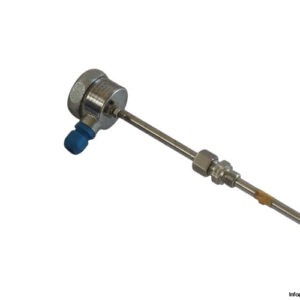

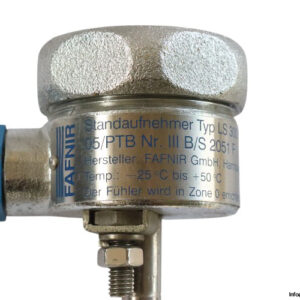

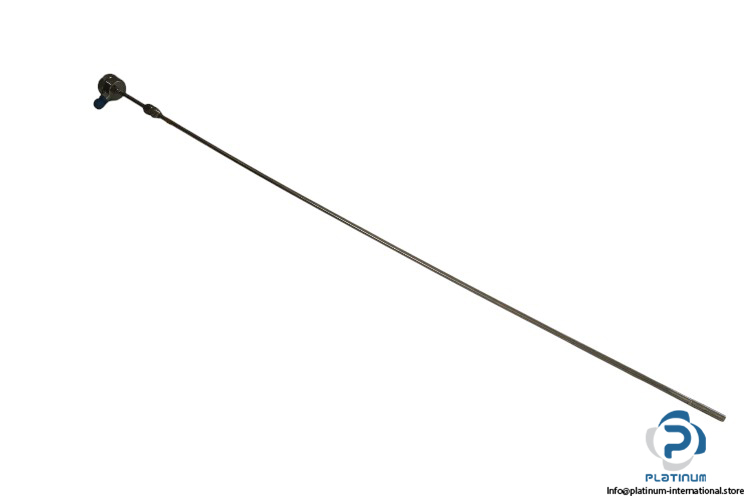

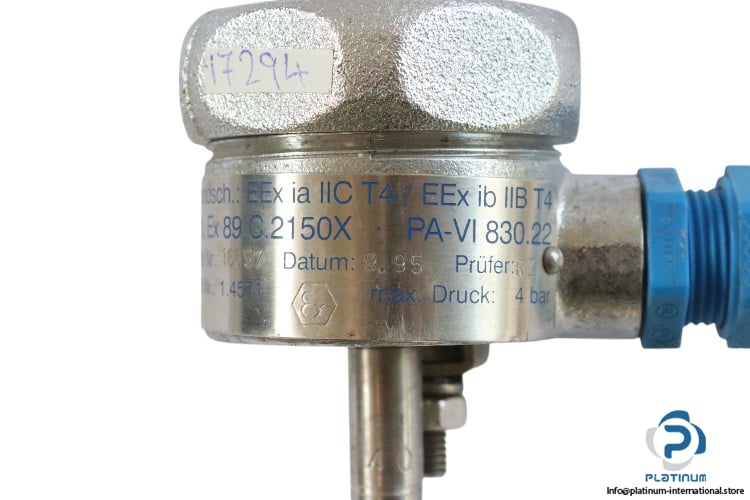

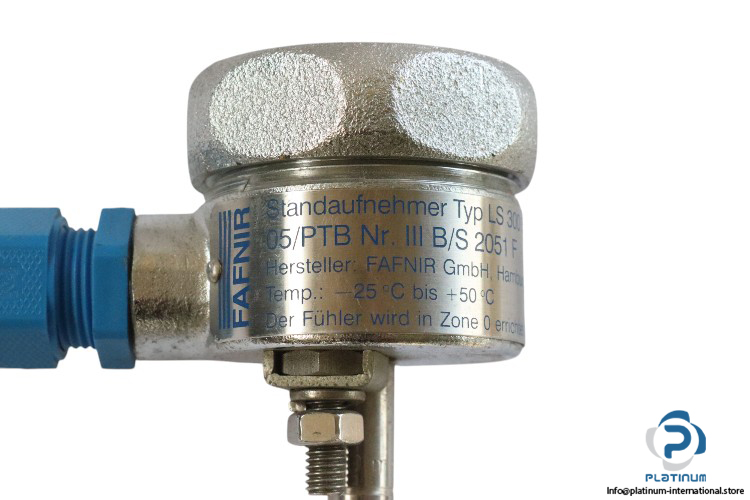

Fafnir LS 300 Level Sensor

Fafnir Level Sensor LS300

Manufacturer: Fafnir

Type: Level Sensor

Model: LS300

Part No.: IIB/S 2051 F / PA-VI 830.22

The Fafnir Level Sensor LS300 is a versatile and reliable solution for precise level measurement in a variety of applications, including tanks, collecting vats, pilot plants, prototype systems, and tank arms for filling. With advanced engineering and durable materials, this level sensor is designed to withstand challenging environments and ensure accurate performance.

Applications:

• Any tank type or size
• Collecting vats
• Pilot plants and prototype systems
• Tank arms for filling

Technical Specifications:

• Process Temperature:
• Standard: -25 to +50 °C
• High Temperature: -25 to +80 °C
• Low Temperature (pressure-free): -40 to +50 °C
• Process Pressure: 0 to 25 bar
• Immersion Switch Delay: < 2 s
• Heating-Up Time:
• At -20 °C: < 2 min.
• At +60 °C: < 15 s
• Connection Housing Material: Brass chrome-plated, Stainless steel
• Tube Fitting: G 3„8, G 1, Flange DN 15
• Probe Tube: 10 mm / Protective Sleeve 12 mm

The LS300 is engineered to deliver reliable, efficient, and precise level sensing under a wide range of process temperatures and pressures. Its robust construction ensures durability in both standard and challenging industrial environments.
