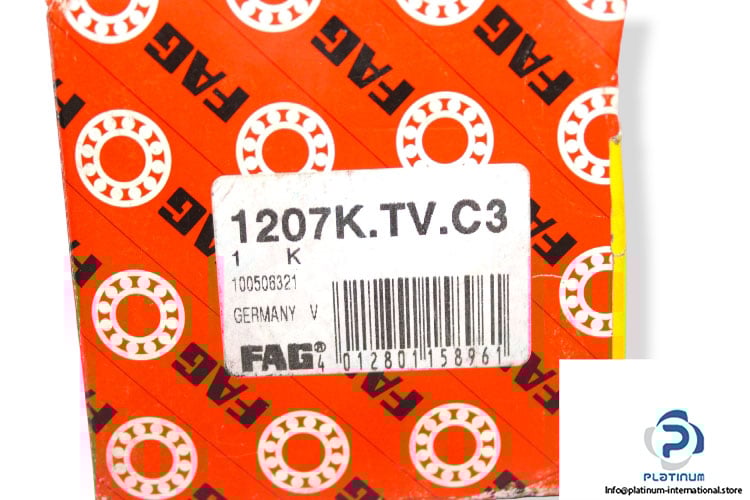

FAG 1207K.TV.C3 Self-Aligning Ball Bearing

Manufacturer: Schaeffler FAG

Type: Self-Aligning Ball Bearing with tapered bore

Model: 1207K.TV.C3

Replaces: 1207-K-TVH-C3



Dimensions

Bore Diameter d: 35 mm

Outer diameter D: 72 mm

Width B: 17 mm

Basic load ratings:

Dynamic C_r: 16000 N

Static C_0r: 5100 N

Fatigue load rating: 325 N

Limiting speed: 11600 rpm

Reference Speed: 9800 rpm

Cage: TVH ,solid cage made of glass-fiber reinforced polyamide PA66

Bore type: Tapered, taper 1:12

Radial internal clearance: Group 3 (C3)
