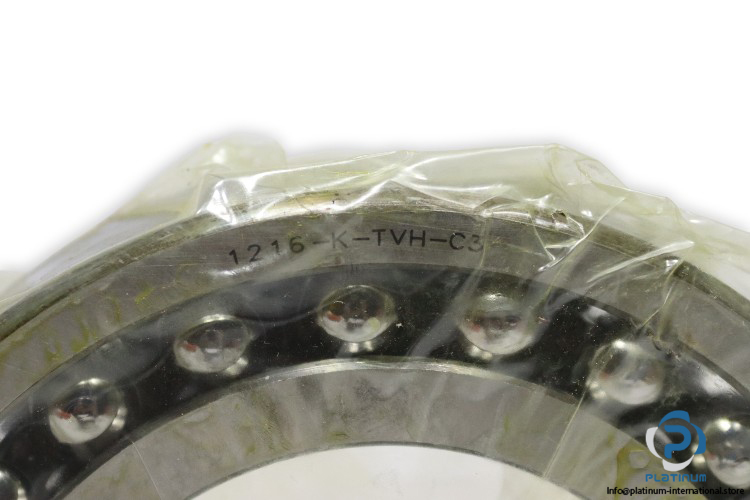

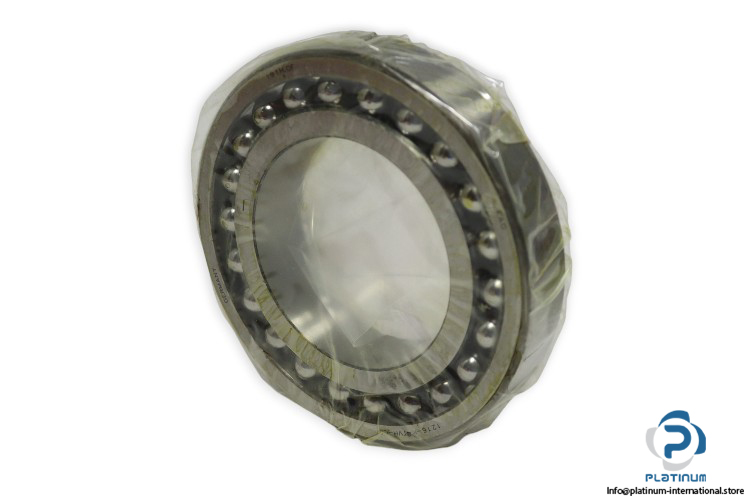

FAG 1216-K-TVH-C3 Self-Aligning Ball Bearing
New
In stock1 unitReady to ship
Self-Aligning Ball Bearing
The FAG 1216-K-TVH-C3 Self-Aligning Ball Bearing ensures smooth operation, high load capacity, and compensation for shaft misalignment with a tapered bore and C3 clearance.1216-K-TVH-C380mmBallbearingboreC3CageClearanceCompensationFagHigh-SpeedIndustrialMisalignmentPolyamidePrecisionSelf-Aligningtapered
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 1216-K-TVH-C3 Self-Aligning Ball Bearing
The FAG 1216-K-TVH-C3 Self-Aligning Ball Bearing is designed for high-performance applications requiring smooth operation and compensation for shaft misalignment. With a tapered bore and C3 clearance, this bearing ensures optimal load distribution and long-lasting durability in industrial environments.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 1216-K-TVH-C3
Basic Load Ratings:
| Bore Diameter (d) | 80 mm |
| Outer Diameter (D) | 140 mm |
| Width (B) | 26 mm |
| Dynamic (Cr) | 40,000 N |
| Static (C0r) | 17,000 N |
| Fatigue Load Rating | 1,020 N |
| Limiting Speed | 5,300 1/min |
| Reference Speed | 5,100 1/min |
| Bore Design | Tapered bore, taper 1:12 |
| Cage | TV, solid cage made of glass-fiber reinforced polyamide PA66 |
| Radial Internal Clearance | C3 |
