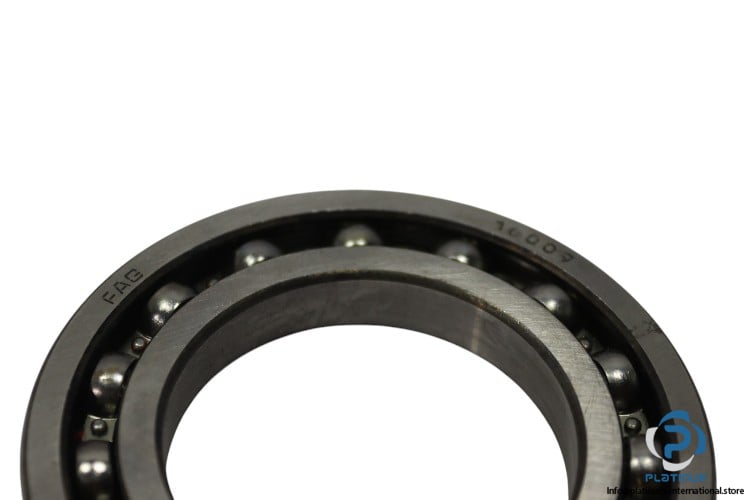

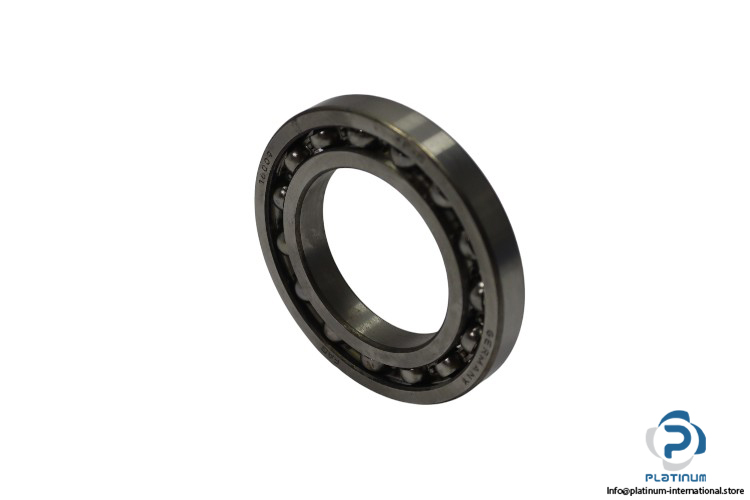

FAG 16009 Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
FAG Schaeffler 16009 Deep Groove Ball Bearing features a 45 mm bore diameter, 75 mm outer diameter, and 10 mm width. It provides high load capacity with a steel sheet metal cage for smooth operation at up to 13,100 rpm.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG Schaeffler Deep Groove Ball Bearing 16009
The FAG Schaeffler Deep Groove Ball Bearing 16009 is designed for high load capacity and smooth rotational performance. With a steel sheet metal cage, it provides efficient operation in a variety of industrial applications.
Manufacturer: FAG Schaeffler
Model: 16009
Type: Deep Groove Ball Bearing
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 75 mm |
| Width (B) | 10 mm |
| Basic Dynamic Load Rating (Radial) | 15,540 N |
| Basic Static Load Rating (Radial) | 12,250 N |
| Fatigue Load Limit (Radial) | 720 N |
| Limiting Speed | 13,100 1/min |
| Reference Speed | 6,900 1/min |
| Cage | Steel Sheet Metal |
