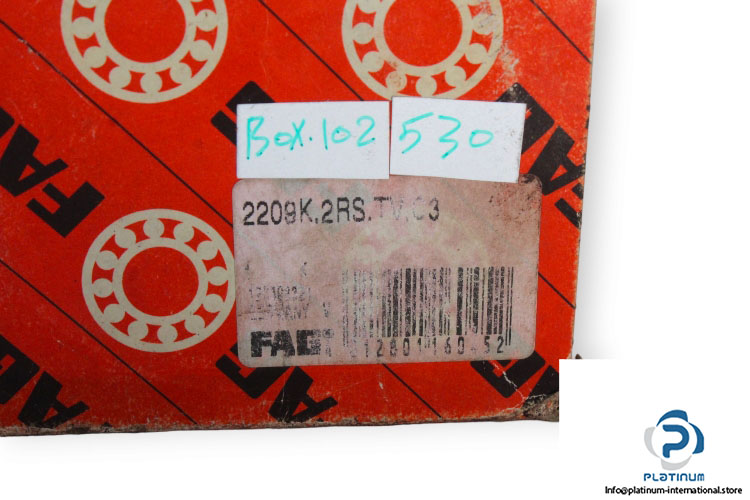

FAG 2209K.2RS.TV.C3 Self-Aligning Ball Bearing

Manufacturer: Schaeffler FAG
Type: Self-Aligning Ball Bearing
Model: 2209 K.2RS.TV.C3

Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 85 mm
Width B: 23 mm
Dynamic load rating: 22000 N
Static load rating: 7300 N
Fatigue load limit: 465 N
limiting speed: 4650 RPM
Bore: Tapered, taper 1:12
Radial internal clearance: Group 3 (C3)
Cage material: Glass-fiber reinforced polyamid PA66
Sealing: 2RS, Contact seal on both sides
