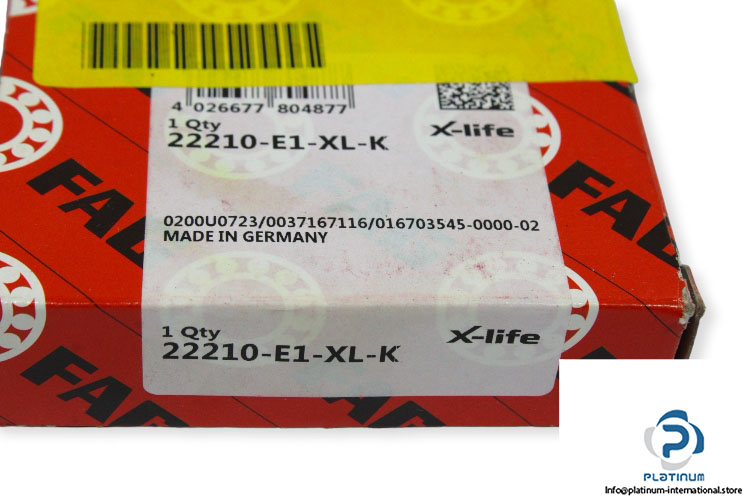

FAG 22210-E1-XL-K Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

Model: 22210 E1-XL-K

Replaces: 22210-E1-K, 22210E1K

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width: 23 mm

Bore type: Tapered, taper 1:12

Dynamic load rating: 109000 N

Static load rating: 107000 N

Fatigue load limit: 14600 N

limiting speed: 9800 RPM

Reference speed: 5100 RPM

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
