FAG 22214-E1-K-C3 Spherical Roller Bearing
New
In stock1 unitReady to ship
Spherical Roller Bearing
High-performance FAG spherical roller bearing with tapered bore and C3 clearance, designed for heavy loads and reliable operation in demanding industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

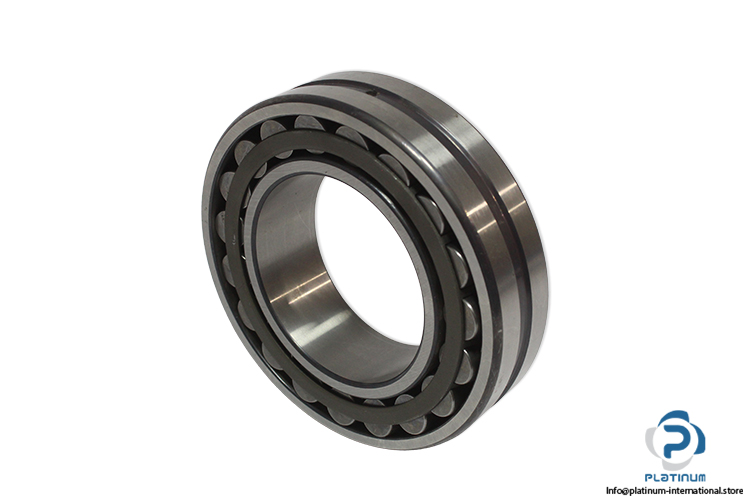

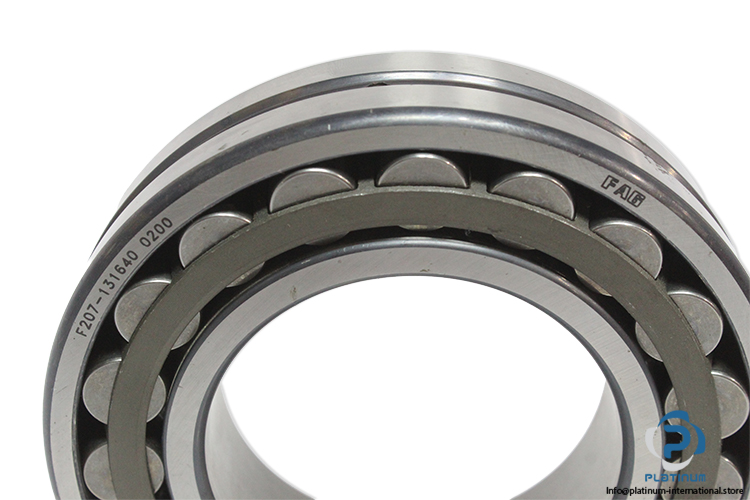

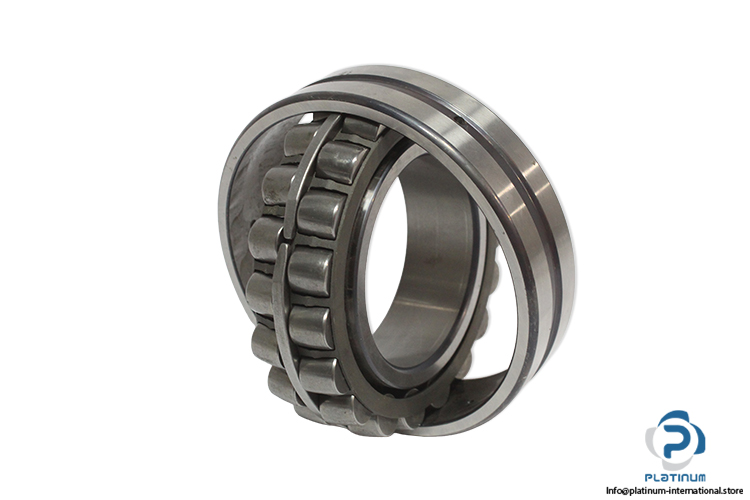

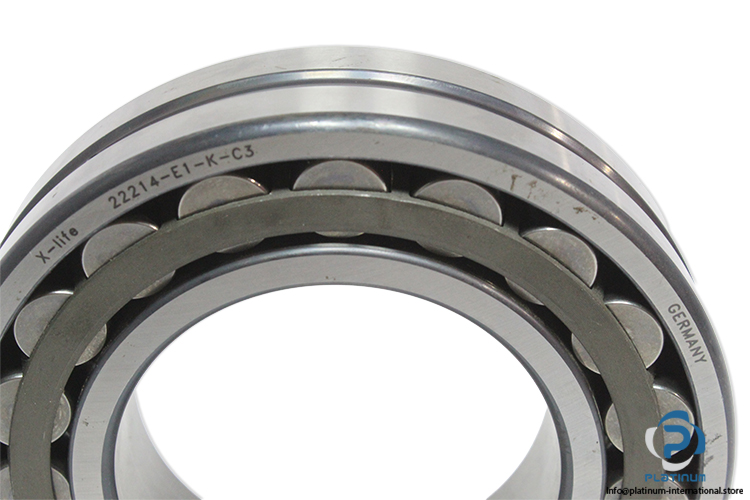

FAG 22214-E1-K-C3 Spherical Roller Bearing
The FAG 22214-E1-K-C3 Spherical Roller Bearing from Schaeffler is a high-performance bearing designed for heavy-duty industrial applications requiring high load capacity and reliable operation under challenging conditions.
Manufacturer: FAG / Schaeffler
Type: Spherical Roller Bearing
Model: 22214-E1-K-C3
Replaces: 22214-E1-XL-K-C3, 22214E1K.C3
| Bore Diameter d | 70 mm |
| Outer Diameter D | 125 mm |
| Width | 31 mm |
| Dynamic Load Rating | 211000 N |
| Static Load Rating | 226000 N |
| Fatigue Load Limit | 28500 N |
| Limiting Speed | 6700 RPM |
| Reference Speed | 3950 RPM |
| Design | E1, Without Central Rip |
| Bore Type | Tapered, Taper 1:12 |
| Radial Internal Clearance | Group 3 (C3) |
| Operating Temperature | -30 / +200 °C |
| Recommended | Ideal choice for high-load and high-reliability applications”ensure optimal performance by pairing with proper lubrication and mounting accessories. |
