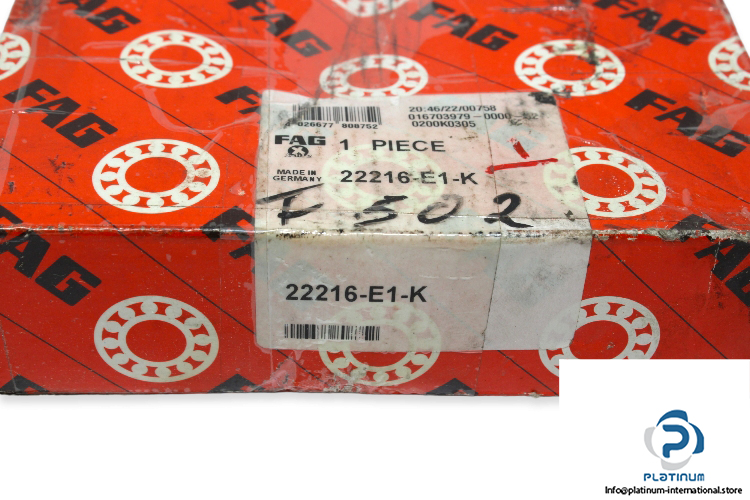

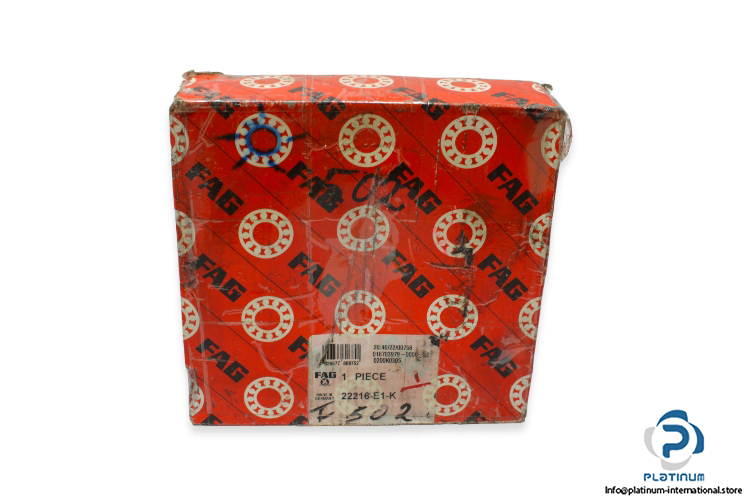

FAG 22216-E1-K Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

Model: 22216 E1-K

Replaces: 22216-E1-XL-K, 22216E1K

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 140 mm

Width: 33 mm

Bore type: Tapered, taper 1:12

Dynamic load rating: 250000 N

Static load rating: 270000 N

Fatigue load limit: 34500 N

limiting speed: 6200 RPM

Reference speed: 3550 RPM

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
