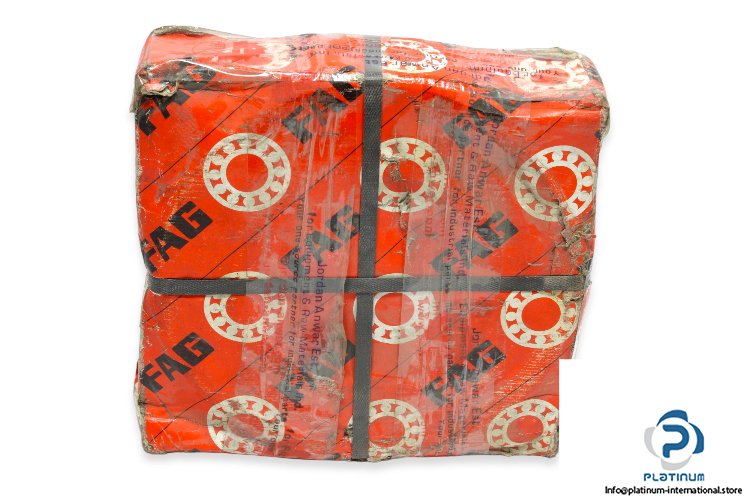

FAG 22222E1K.C3 Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

Model: 22222 E1K.C3

Replaces: 22222-E1-XL-K-C3, 22222-E1-K-C3

Dimensions:

Bore Diameter d: 110 mm

Outer diameter D: 200 mm

Width: 53 mm

Bore type: Tapered, taper 1:12

Dynamic load rating: 550000 N

Static load rating: 600000 N

Fatigue load limit: 64000 N

limiting speed: 4100 RPM

Reference speed: 3000 RPM

Radial internal clearance: Group 3 (C3)

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
