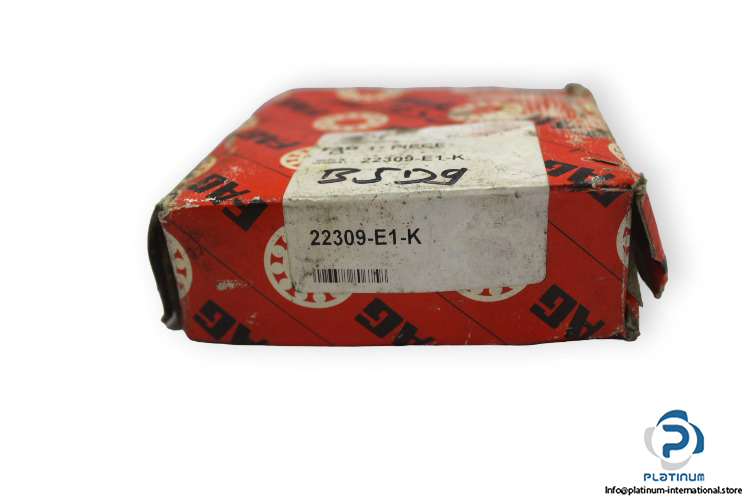

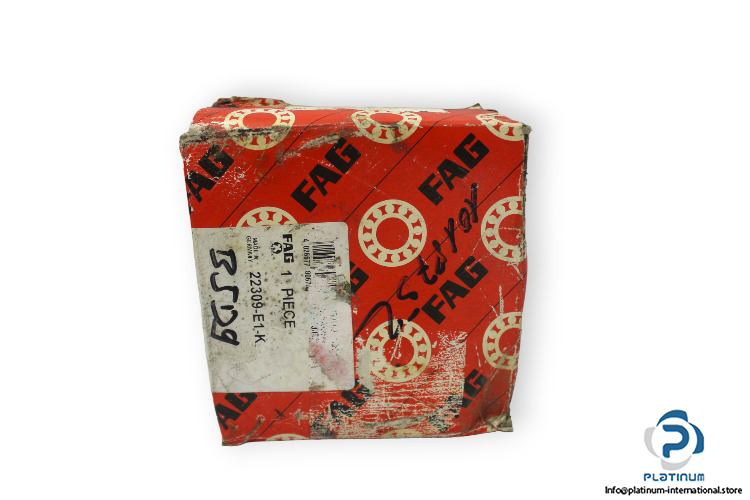

FAG 22309-E1-K Spherical Roller Bearing

Manufacturer: Schaeffler FAG
Type: Spherical Roller Bearing with tapered bore
Model: 22309E1K
Replaces: 22309E1K, 22309-E1-XL-K

Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 100 mm
Width B: 36 mm
Basic load ratings, radial:
Dynamic C_r: 187000 N
Static C_0r: 183000 N
Fatigue load limit: 16500 rpm
Limiting Speed: 6800 rpm
Reference speed: 5000 rpm
Design: E1, without central rip
Bore type: Tapered bore, taper 1:12
Cage: Sheet metal
