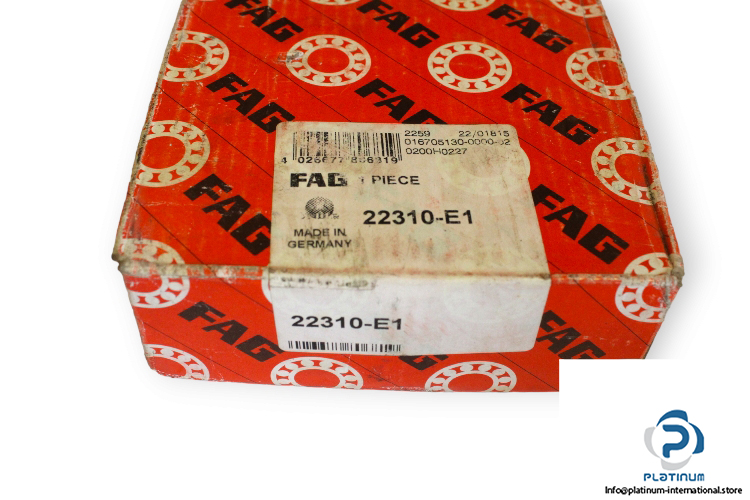

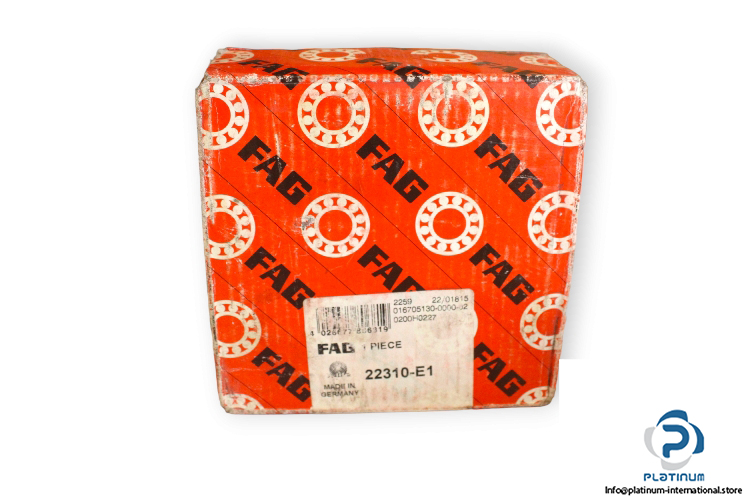

FAG 22310-E1 Spherical Roller Bearing

Manufacturer: Schaeffler FAG
Type: Spherical Roller Bearing
Model: 22310E1

Dimensions:
Bore Diameter d: 50 mm
Outer diameter D: 110 mm
Width: 40 mm
Dynamic load rating: 229000 N
Static load rating: 223000 N
Fatigue load limit: 20700 N
limiting speed: 6300 RPM
Reference speed: 4800 RPM
Cage material: Sheet metal cage
Operating temperature: -30 … +200 °C
