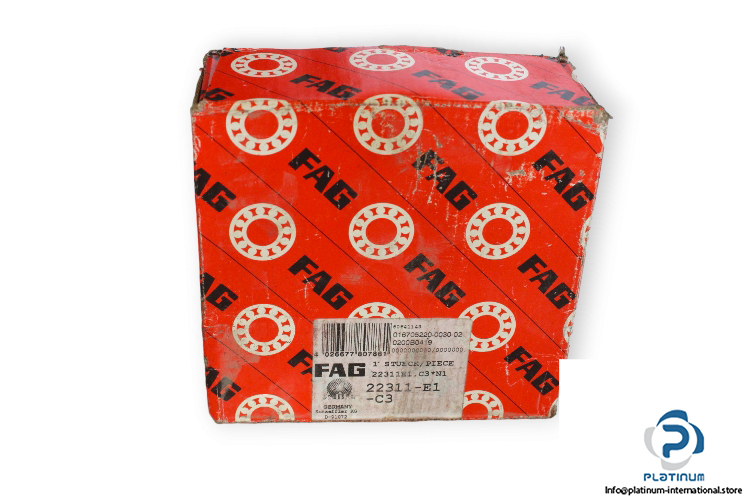

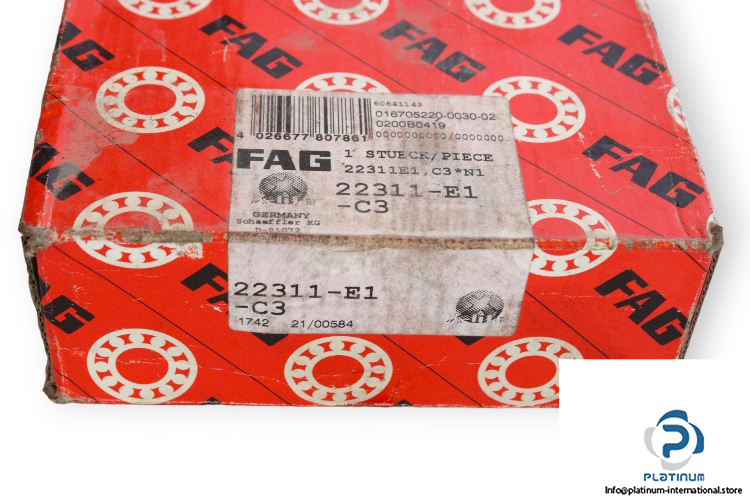

FAG 22311-E1-C3 Spherical Roller Bearing

Manufacturer: FAG
Type: Spherical Roller Bearing
Model: 22311E1-C3

Dimensions
Bore Diameter d: 55 mm
Outer diameter D: 120 mm
Width B: 43 mm
Basic load ratings, radial:
Dynamic C_r: 265000 N
Static C_0r: 260000 N
Fatigue load limit, radial: 24600 N
Limiting Speed: 5800 rpm
Reference speed: 4500 rpm
Radial internal clearance: C3
Design: E1, without central rip
Cage material: Sheet metal cage
Operating temperature: -30 … +200 °C
