FAG 2307K.TV.C3 Self-Aligning Ball Bearing
Self-Aligning Ball Bearing

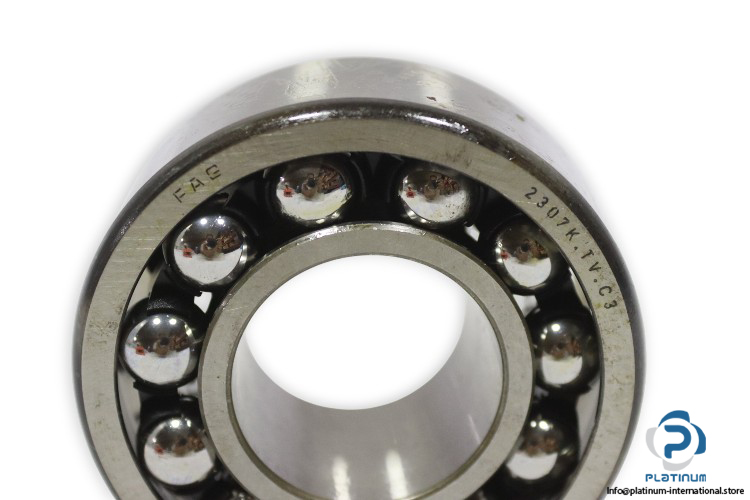

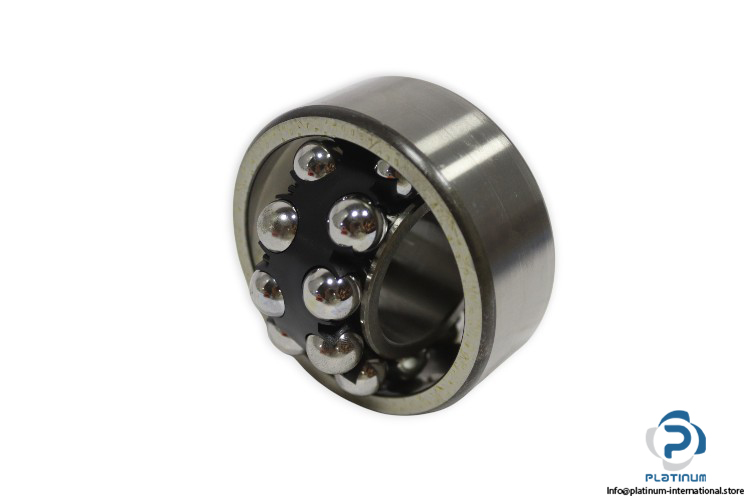

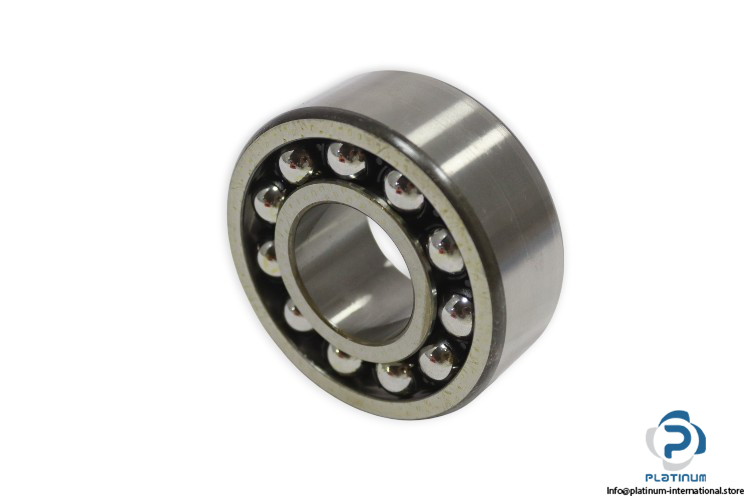

FAG / Schaeffler 2307K.TV.C3 self-aligning ball bearing with tapered bore, C3 clearance, and PA66 cage for industrial applications with shaft misalignment.FAG / Schaeffler 2307K.TV.C3 Self-Aligning Ball Bearing
A high-quality self-aligning ball bearing manufactured by FAG / Schaeffler, designed to accommodate shaft misalignment and provide smooth, low-friction rotation in industrial applications. This bearing features a tapered bore with C3 internal clearance and a reinforced polyamide cage, ensuring reliable performance, high load capacity, and stable operation across a wide temperature range.
Manufacturer: FAG / Schaeffler
Type: Self-Aligning Ball Bearing
Model: 2307K.TV.C3
Application:
Suitable for industrial machinery, electric motors, gearboxes, conveyor systems, and applications where shaft deflection or misalignment may occur, while maintaining reliable load carrying capacity and rotational accuracy.
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 80 mm |
| Width (B) | 31 mm |
| Basic Dynamic Load Rating | 40,500 N |
| Basic Static Load Rating | 11,200 N |
| Fatigue Load Limit, Radial | 710 N |
| Limiting Speed | 8,900 1/min |
| Reference Speed | 9,800 1/min |
| Bore Type | Tapered, taper 1:12 |
| Clearance | C3 |
| Cage | TV, Plastic Cage made from PA66 |
| Operating Temperature | -40 to +120 °C |
