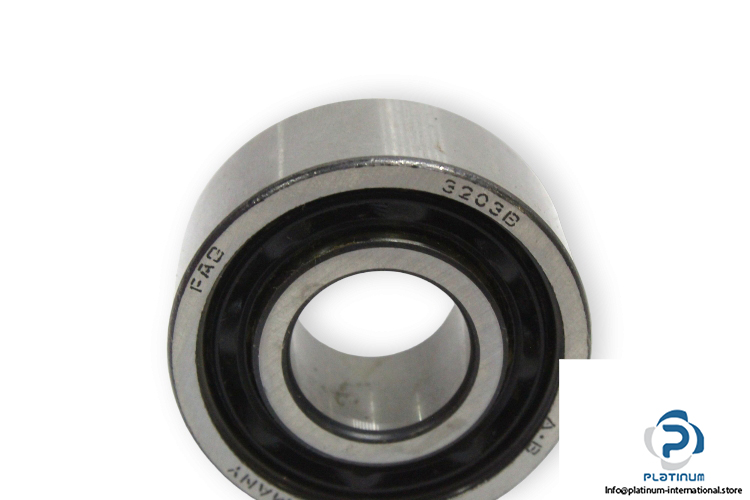

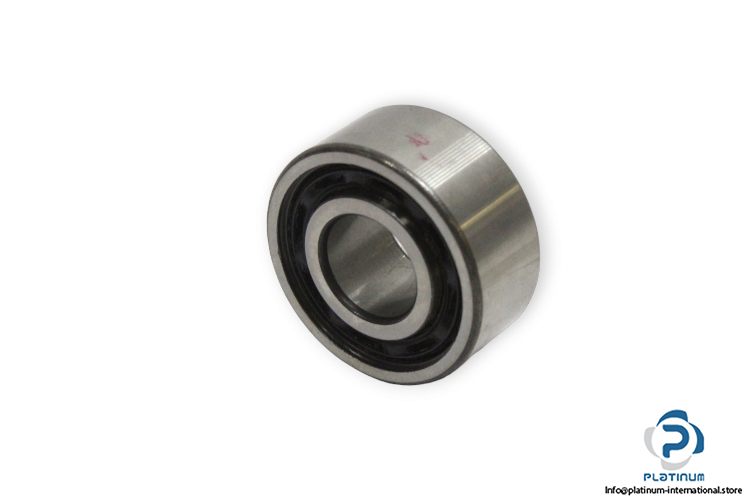

FAG 3203 B Double ROW Angular Contact Ball Bearing

Name: FAG 3203 B DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 1005833
Availability: LimitedAvailability

fag-3203-B-double-row-angular-contact-ball-bearing-(new)-1

New

In stock4 unitsReady to ship

Manufacturer: Schaeffler FAG Type: Double Row Angular Contact Ball Bearing Model: 3203B

Manufacturer

FAG

SKU

1005833

Category

Angular Contact

Condition

New

17 Angular Ball bearing bearings Contact Double Fag mm Row

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3203B

Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 40 mm
Width B: 17.5 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 15500 N
Static C_0r: 9500 N
Fatigue load limit C_ur: 660 N
Limiting speed: 19400 rpm
Reference speed: 16600 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Design: B, Modified internal construction, nominal contact angle without filling slot
