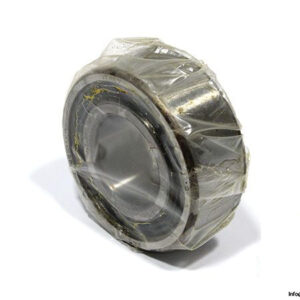

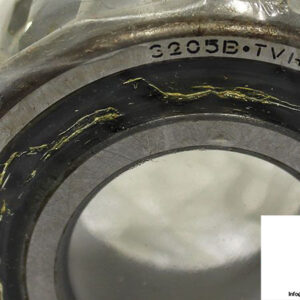

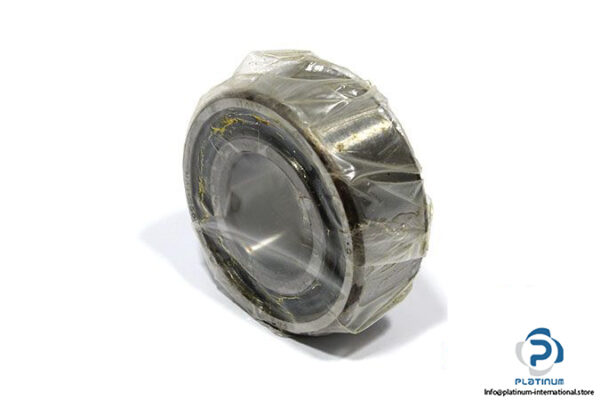

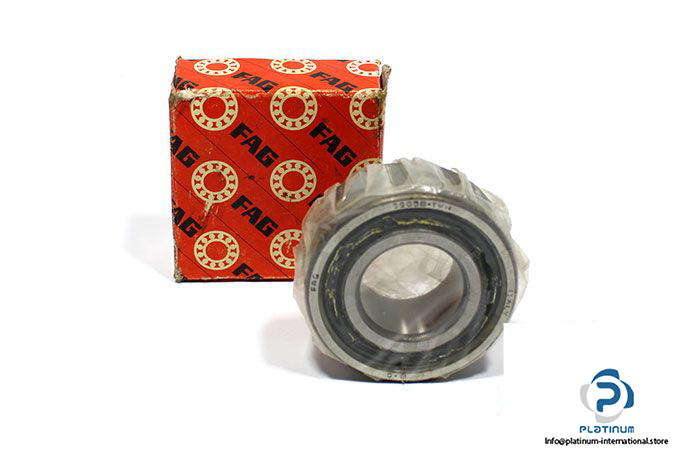

FAG 3205B.TVH Double ROW Angular Contact Ball Bearing
New
In stock2 unitsReady to ship
Double Row Angular Contact Ball Bearing
FAG 3205B.TVH double row angular contact ball bearing with 30° contact angle, polyamide cage, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

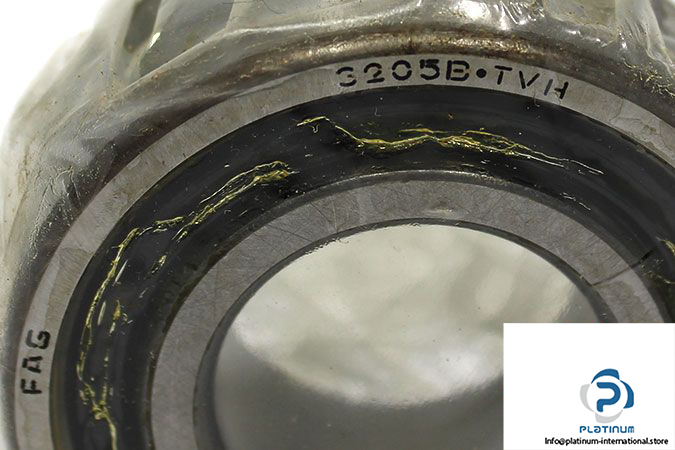

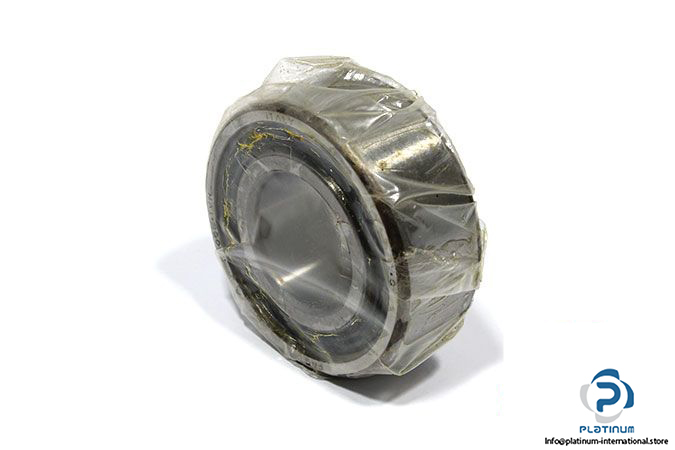

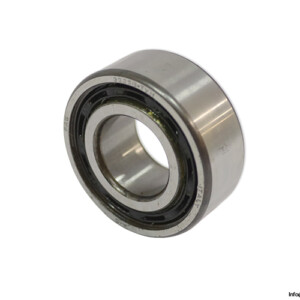

FAG 3205B.TVH Double Row Angular Contact Ball Bearing
The FAG 3205B.TVH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads while providing stable operation and long service life in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Double Row Angular Contact Ball Bearing
Model: 3205B.TVH

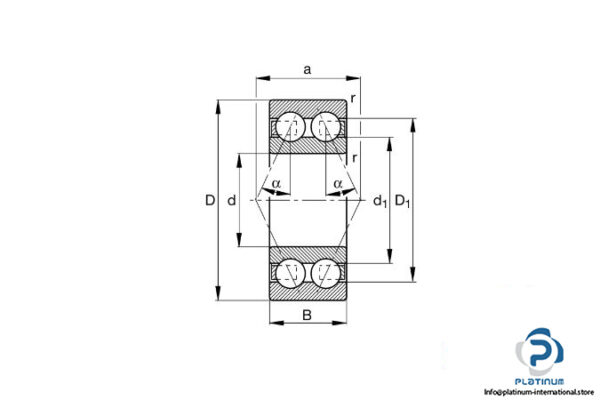

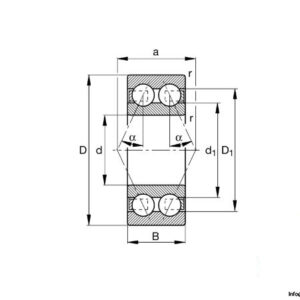

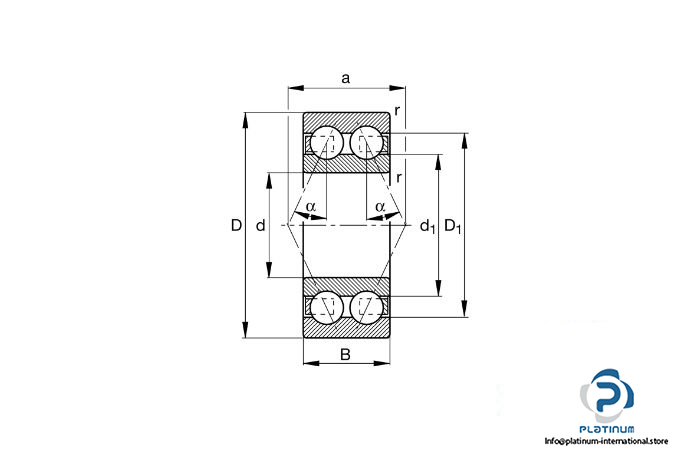

| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 20.6 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 22,000 N |
| Static Load Rating (C0r) | 15,200 N |
| Fatigue Load Limit (Cur) | 1,050 N |
| Limiting Speed | 14,300 1/min |
| Reference Speed | 12,500 1/min |
| Cage | TVH, solid cage made of glass-fiber reinforced polyamide PA66 |
| Design Variant | B, bearing without filling slot |
| Operating Temperature Range | ˆ’20 to +100 °C |
