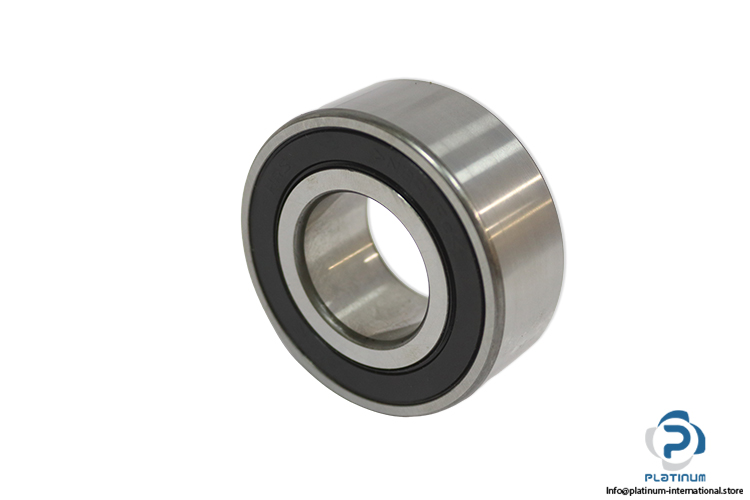

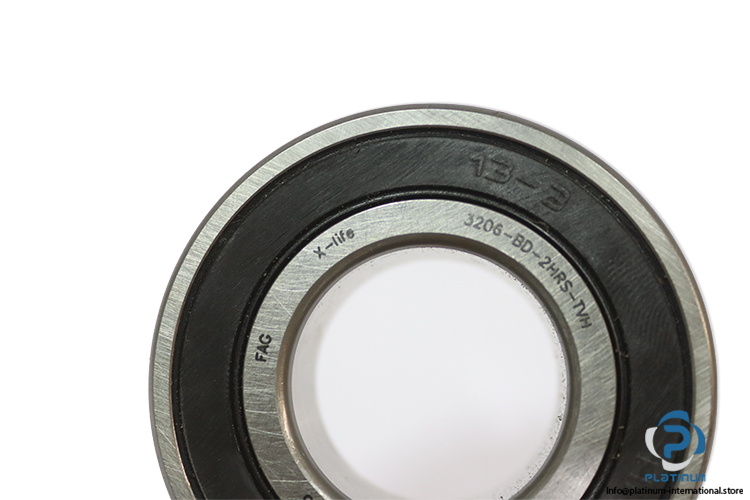

FAG 3206-BD-2HRS-TVH Angular Contact Ball Bearing

In stock2 unitsReady to ship

Double Row Angular Contact Ball Bearing

FAG 3206-BD-2HRS-TVH double row angular contact ball bearing with 30 mm bore, sealed on both sides, and high load capacity for industrial applications.

Manufacturer
FAG
SKU
1089904
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

FAG 3206-BD-2HRS-TVH Double Row Angular Contact Ball Bearing

The FAG 3206-BD-2HRS-TVH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads while providing high rigidity and reliable operation in industrial applications.

Manufacturer: FAG / Schaeffler

Type: Double Row Angular Contact Ball Bearing

Model: 3206-BD-2HRS-TVH

Bore Diameter (d)30 mm
Outer Diameter (D)62 mm
Width (B)23.8 mm
Contact Angle30°
Dynamic Load Rating (Cr)31,000 N
Static Load Rating (C0r)22,200 N
Fatigue Load Limit (Cur)1,540 N
Limiting Speed9,000 1/min
Seal2HRS, contact seal on both sides
CageTVH, solid cage made of glass-fiber reinforced polyamide PA66
Design VariantB, bearing without filling slot
Internal DesignD, changed internal design
Operating Temperature Range-20 to +100 °C

You May Also Need

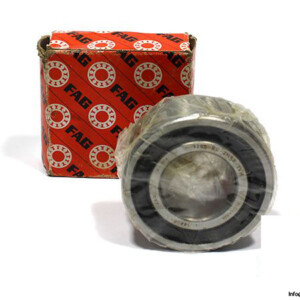

FAG 3206-BD-2HRS-TVH Double ROW Angular Contact Ball Bearing
