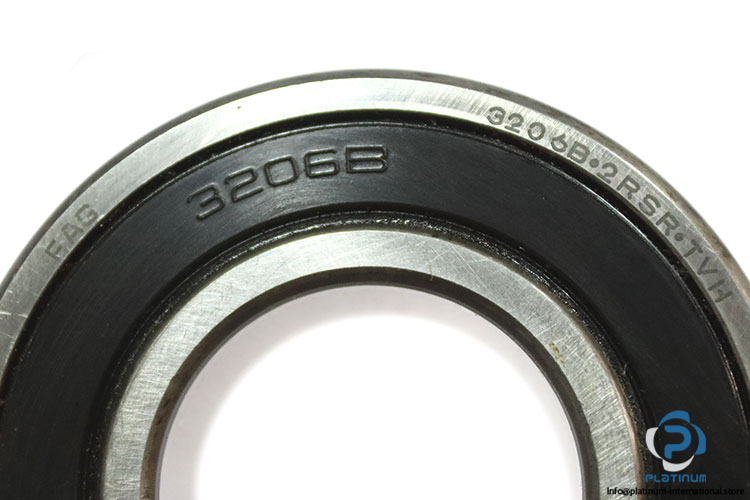

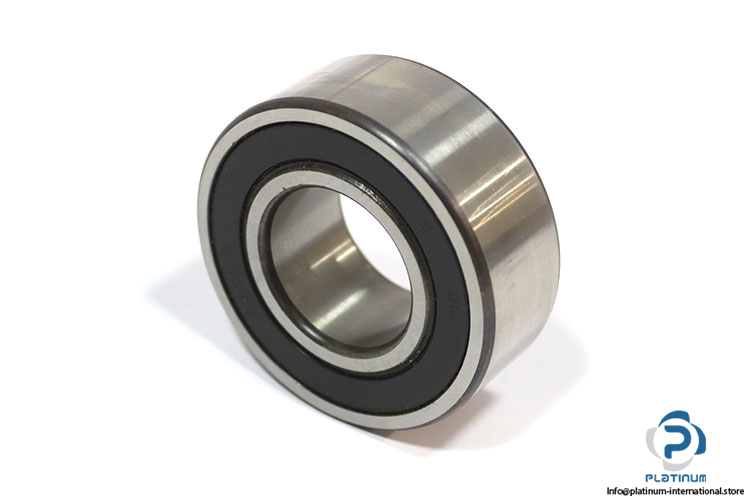

FAG 3206B.2RSR.TVH Angular Contact Ball Bearing
New
In stock6 unitsReady to ship
Angular Contact Ball Bearing
FAG 3206B.2RSR.TVH double row angular contact ball bearing with 2RSR sealing, TVH polyamide cage, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 3206B.2RSR.TVH Double Row Angular Contact Ball Bearing
The FAG 3206B.2RSR.TVH is a precision double row angular contact ball bearing designed to support combined radial and axial loads while maintaining high running accuracy and reliability in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Double Row Angular Contact Ball Bearing
Model: 3206B.2RSR.TVH
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 23.8 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 31,000 N |
| Static Load Rating (C0r) | 22,200 N |
| Fatigue Load Limit (Cur) | 1,540 N |
| Limiting Speed | 9,000 1/min |
| Reference Speed | 9,500 1/min |
| Sealing | 2RSR, Rubber seals on both sides |
| Cage | TVH, Glass-Fiber Reinforced Polyamide PA66 |
| Design Variant | B, Bearing without filling slot |
| Operating Temperature | ˆ’20 to +100 °C |
