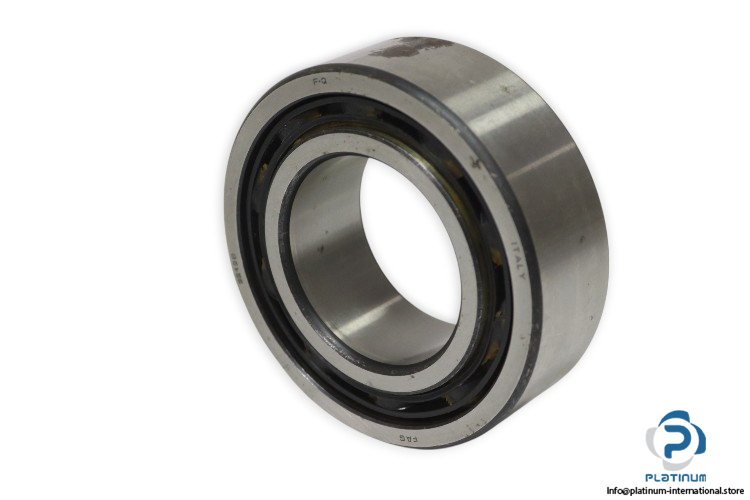

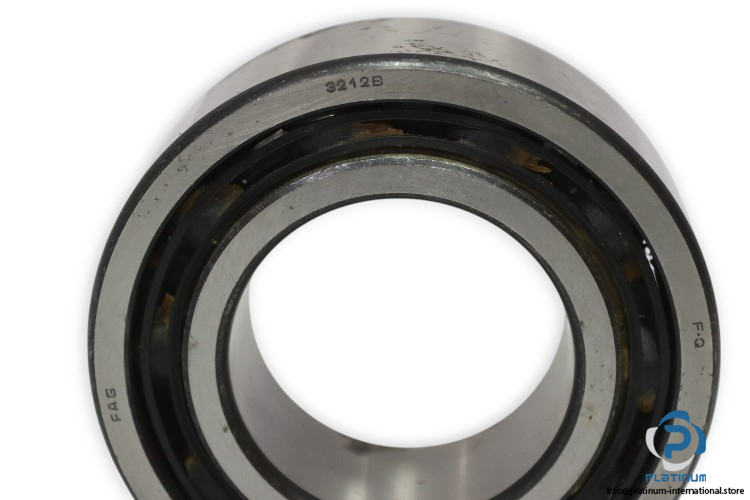

FAG 3212B.TVH Double ROW Angular Contact Ball Bearing
Used
In stock1 unitReady to ship
DOUBLE ROW ANGULAR CONTACT BALL BEARING
FAG 3212B.TVH bearing with 60 mm bore, 110 mm outer diameter, 36.5 mm width, 30° contact angle, and TVH cage design for high load capacity and durability.303212B.TVH60x110x36.5AngleAngularBallbearingCageContactDegreeDoubleFagFiberGlassHighLoadreinforcedRowSpeedTVH
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 3212B.TVH DOUBLE ROW ANGULAR CONTACT BALL BEARING
The FAG 3212B.TVH is a high-precision double row angular contact ball bearing designed for applications requiring high load capacity and reliability. With a 30° contact angle and a solid cage made of glass-fiber reinforced polyamide PA66, this bearing offers excellent performance in demanding environments.
Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3212B.TVH
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 110 mm |
| Width (B) | 36.5 mm |
| Basic Dynamic Load Rating, Radial | 75,000 N |
| Basic Static Load Rating, Radial | 64,000 N |
| Fatigue Load Limit, Radial | 4,400 N |
| Limiting Speed | 6,300 1/min |
| Reference Speed | 6,700 1/min |
| Contact Angle | 30° |
| Cage Design | TVH (Solid cage made of glass-fiber reinforced polyamide PA66) |
