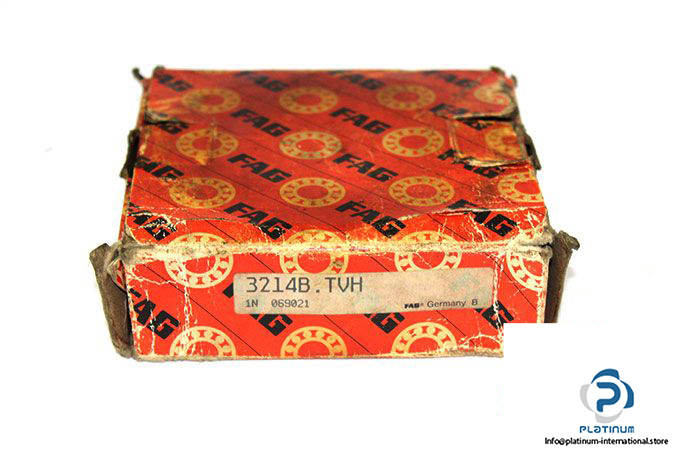

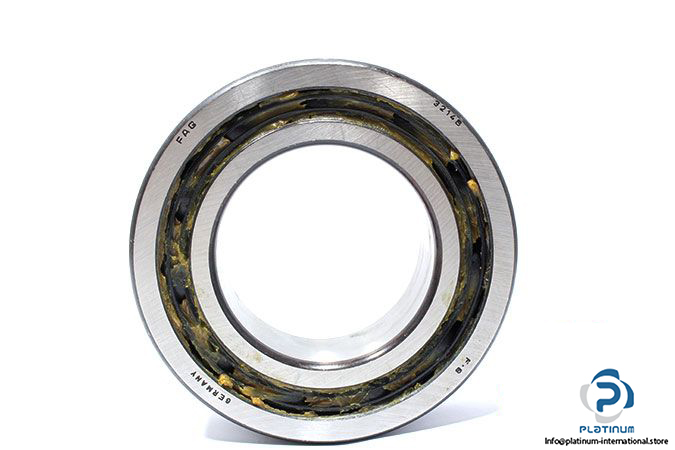

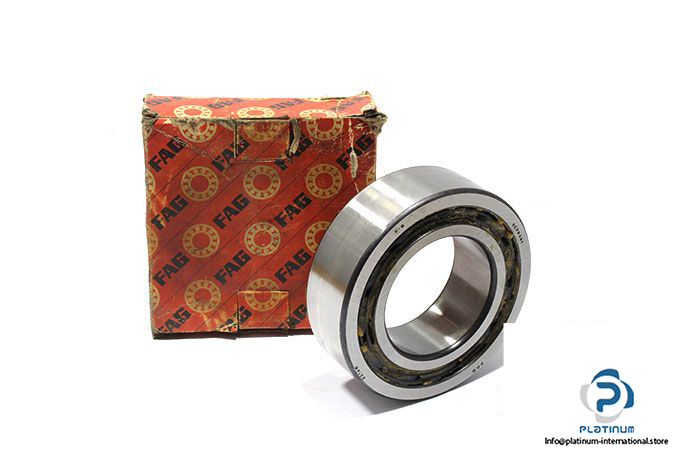

FAG 3214B.TVH Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double row angular contact ball bearing

Part No: 3214B.TVH

Replaces: 3214-B-TVH

Bore Diameter: 70 mm

Outer diameter: 125 mm

Width: 39.7 mm

Contact Angle: 25°

Basic load ratings:

Dynamic C_r: 82 kN

Static C_0r: 79 kN

Fatigue limit load C_ur: 4100 N

Limiting Speed: 4150 rpm

Reference speed: 5600 rpm

Cage design: TVH, Solid cage made from glass fiber reinforced polyamide PA66, ball-guided

Design: B; Modified internal construction, nominal contact angle without filling slot
