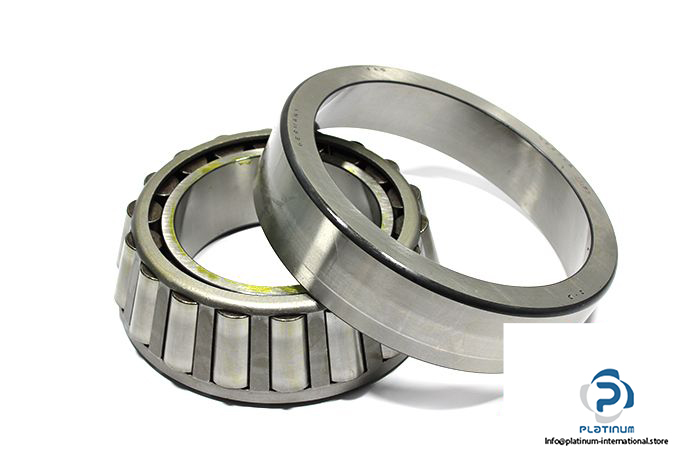

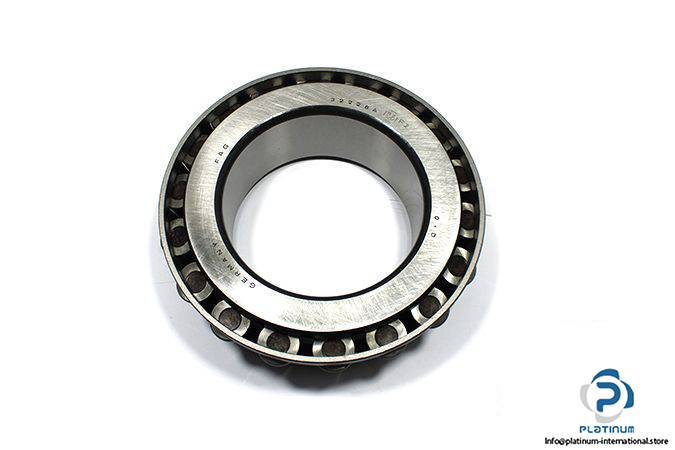

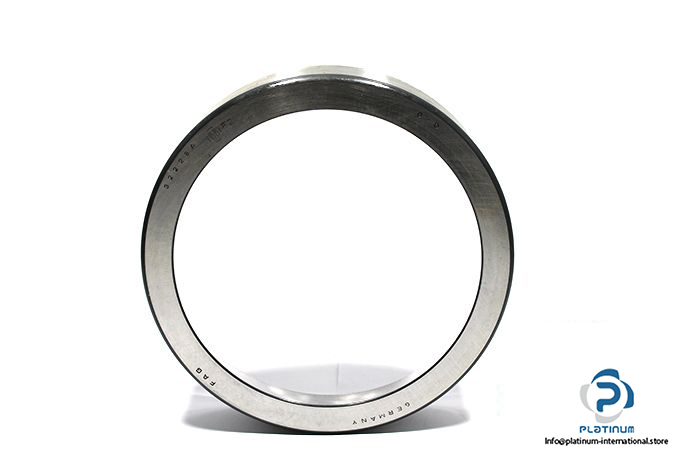

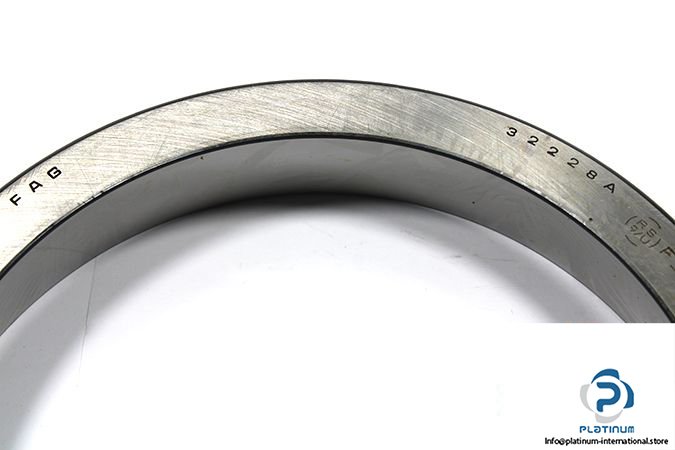

FAG 32228 A Tapered Roller Bearing
Manufacturer: Schaeffler FAG
Type: Tapered Roller Bearing
Model: 32228

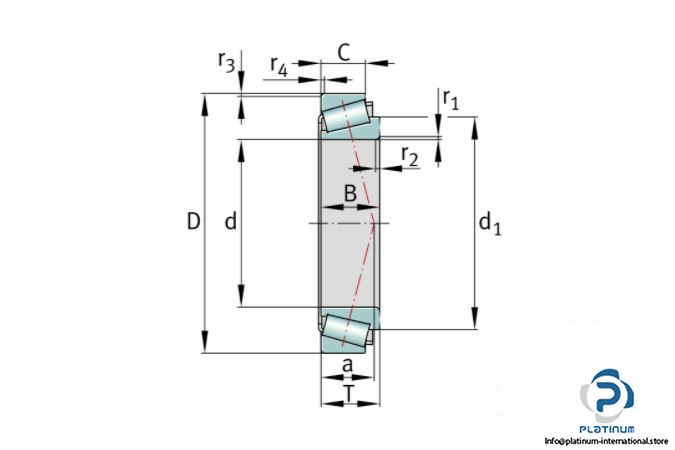

Dimension:
Bore Diameter d: 140 mm
Outer diameter D: 250 mm
Width total T: 71.75 mm
Basic dynamic load rating Cr: 760,000 N
Basic static load rating C0r: 990,000 N
Fatigue load limit Cur: 139,000 N
Thermal speed rating: 1760 rpm
Limiting speed: 3250 rpm
Operating temperature: -30 … +200 °C
Cage Material: Sheet steel cage
Weight: 14.55 kg
