FAG 3307B.TVH Double ROW Angular Contact Ball Bearing
Used
In stock1 unitReady to ship
DOUBLE ROW ANGULAR CONTACT BALL BEARING
FAG 3307B.TVH double row angular contact ball bearing, 35 mm bore, 80 mm outer diameter, 34.9 mm width, 30° contact angle, with solid glass-fiber reinforced polyamide cage for high performance.3307B.TVH3580AngularBallbearingboreCageCapacityContactdiameterDoubleFagFiberGlassHighLoadmmOuterPrecisionreinforcedRowTVH
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

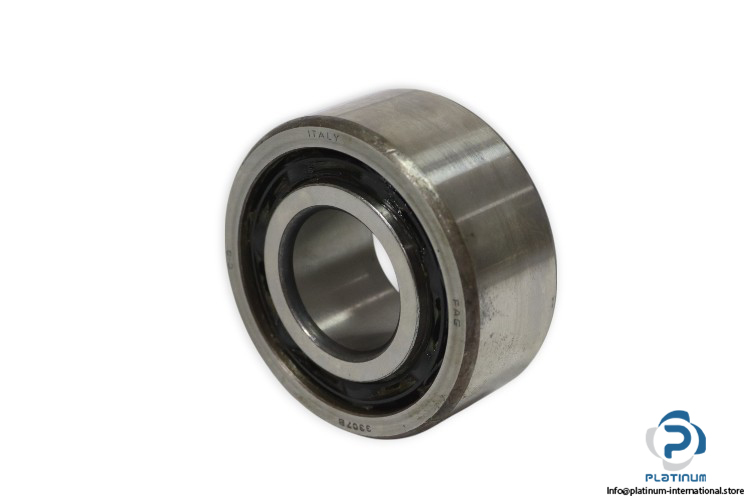

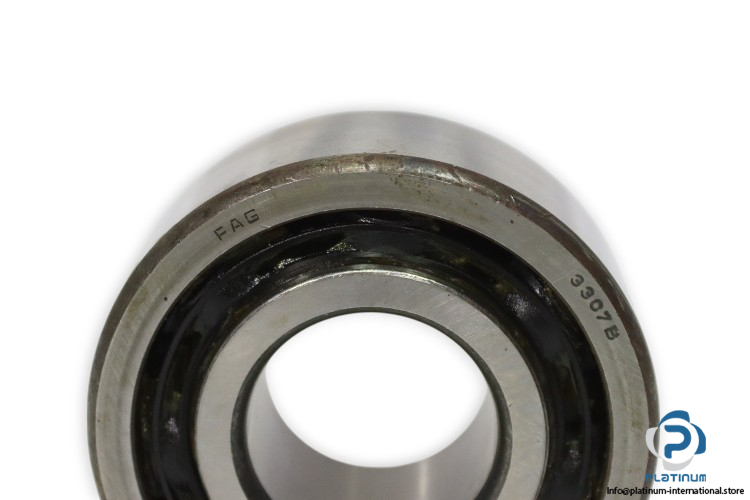

FAG 3307B.TVH DOUBLE ROW ANGULAR CONTACT BALL BEARING
The FAG 3307B.TVH is a high-quality double row angular contact ball bearing designed for applications requiring high load capacity, precision, and smooth operation. Featuring a solid glass-fiber reinforced polyamide cage, it offers durability, reduced friction, and extended service life under demanding conditions.
Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3307B.TVH
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 80 mm |
| Width (B) | 34.9 mm |
| Contact Angle | 30° |
| Basic Load Ratings, Radial | Dynamic Cr: 55000 N / Static C0r: 36500 N |
| Fatigue Load Rating | 2550 N |
| Limiting Speed | 9000 rpm |
| Reference Speed | 8100 rpm |
| Cage | TVH, solid cage made of glass-fiber reinforced polyamide PA66 |
| Operating Temperature | -20°C to +120°C |
