FAG 3312B.TVH.C3 Double ROW Angular Contact Ball Bearing
New
Available on request
Double Row Angular Contact Ball Bearing
The FAG 3312B.TVH.C3 is a precision-engineered bearing with 60 mm bore, C3 clearance, and a glass-fiber reinforced PA66 TVH cage. Built for high-speed, high-load applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

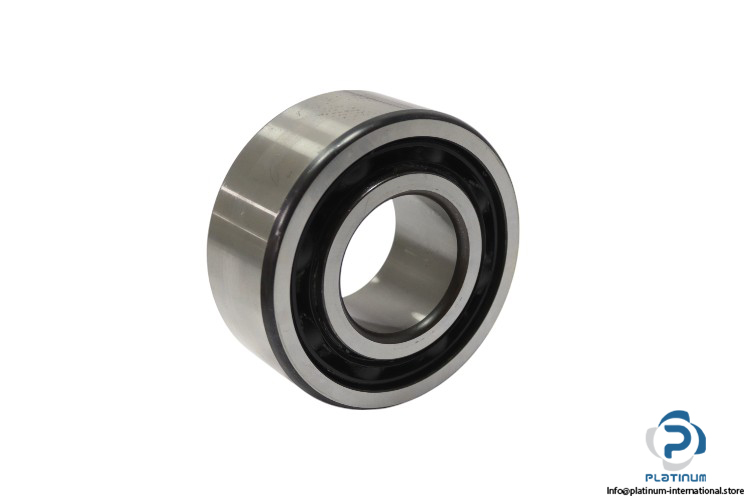

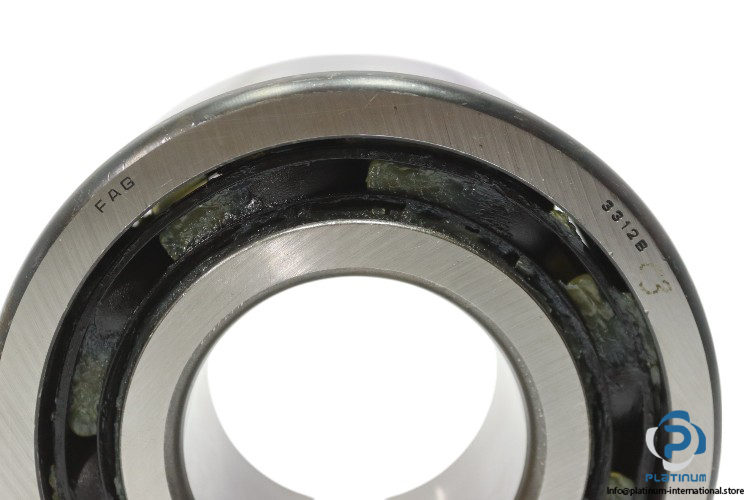

FAG 3312B.TVH.C3 Double Row Angular Contact Ball Bearing
The FAG 3312B.TVH.C3 is a high-performance double row angular contact ball bearing designed to handle both radial and axial loads in both directions. It features a TVH solid cage made from glass-fiber reinforced polyamide PA66 for lightweight strength and durability. The C3 clearance ensures optimal performance in high-speed and high-temperature conditions.
Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3312B.TVH.C3
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 54 mm |
| Clearance | C3 |
| Cage Type | TVH “ Solid cage made of glass-fiber reinforced polyamide PA66 |
