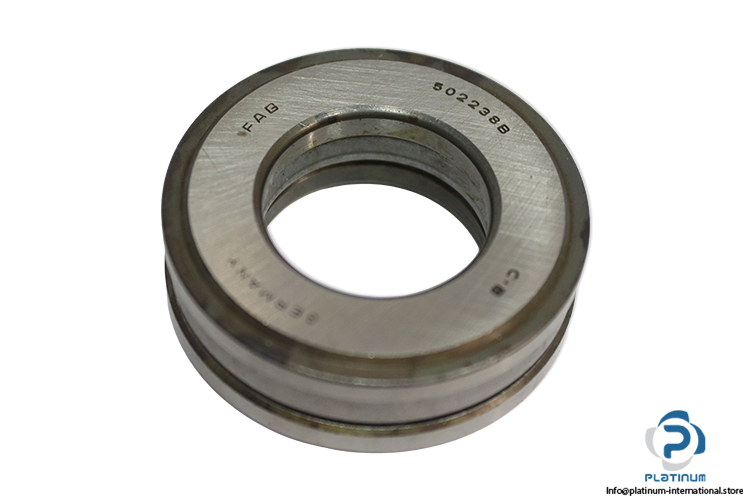

FAG 502238B Thrust Ball Bearing

In stock1 unitReady to ship

Thrust Ball Bearing

FAG 502238B thrust ball bearing with modified internal design, high axial load capacity, and reliable performance for industrial applications.

Manufacturer
FAG
SKU
1090032
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

FAG 502238B Thrust Ball Bearing

The FAG 502238B thrust ball bearing is designed to accommodate axial loads in one direction while ensuring reliable performance and precise guidance in demanding industrial applications.

Manufacturer: FAG

Type: Thrust Ball Bearing

Model: 502238B (51/52205A)

Load Ratings

Speed Ratings

Inner Diameter (Shaft Washer)20 mm
Outer Diameter (Housing Washer)47 mm
Height28 mm
Maximum Diameter (Shaft Shoulder)25 mm
Maximum Diameter (Housing Shoulder)34 mm
Inner Diameter (Housing Washer)27 mm
Dynamic Load (Ca)26,500 N
Static Load (C0a)50,000 N
Fatigue Load Rating (Cu)2,280 N
Limiting Speed7,500 1/min
Reference Speed9,400 1/min
SuffixB, Modified Internal Design
