FAG 51/52208A-51/53208A Thrust Ball Bearing
New
In stock1 unitReady to ship
Thrust Ball Bearing
The FAG 51/52208A-51/53208A Thrust Ball Bearing features a 30 mm inner diameter, 68 mm outer diameter, dynamic load rating of 44000 N, and is designed for high-speed operation in industrial applications.304400051/52208A-51/53208A97000AxialBallbearingCapacitydiameterDynamicFagHigh-SpeedIndustrialInnerLoadmmNRatingStaticThrustWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

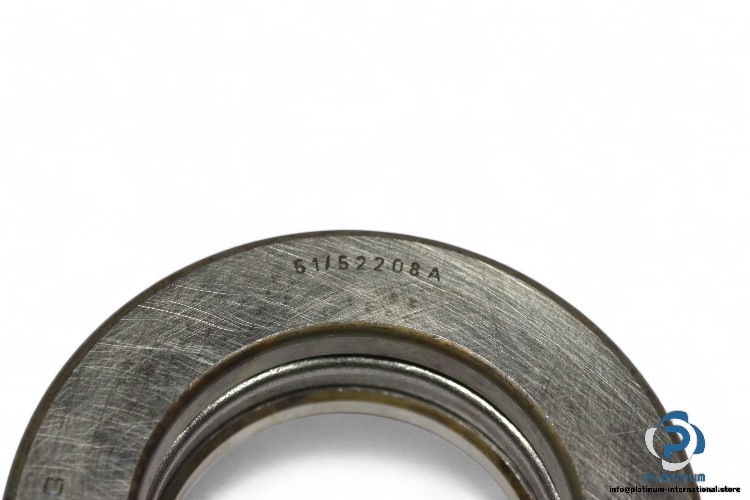

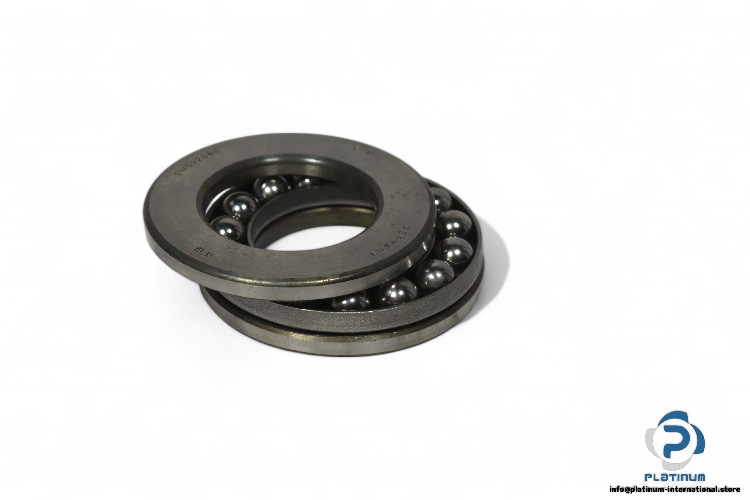

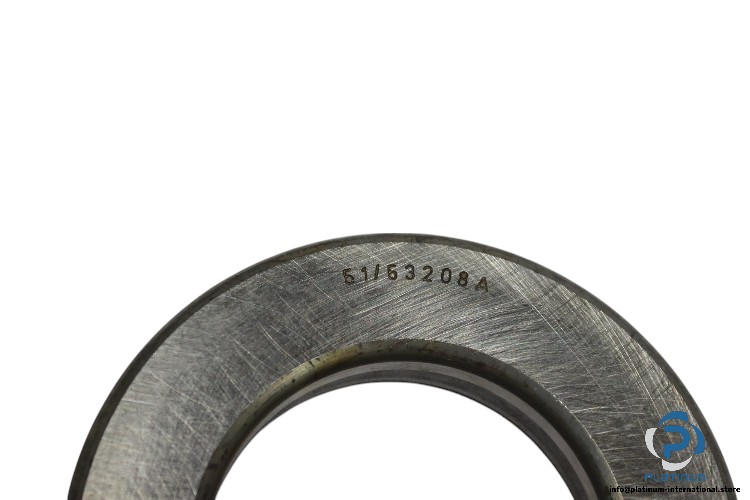

FAG 51/52208A-51/53208A Thrust Ball Bearing
The FAG 51/52208A-51/53208A Thrust Ball Bearing is designed for high axial load applications, offering reliable performance under dynamic and static conditions. This bearing is perfect for machinery and equipment that require durability and high-speed operation.
Manufacturer: FAG
Type: THRUST BALL BEARING
Model: 51/52208A-51/53208A
Basic Load Ratings:
Speed Ratings:
This FAG thrust ball bearing provides smooth, efficient, and reliable performance for high-speed industrial applications, with excellent axial load capacity and a wide range of operational capabilities.
| Inner Diameter (Shaft Washer) | 30 mm |
| Outer Diameter (Housing Washer) | 68 mm |
| Height | 36 mm |
| Maximum Diameter (Shaft Shoulder) | 40 mm |
| Maximum Diameter (Housing Shoulder) | 51 mm |
| Inner Diameter (Housing Washer) | 42 mm |
| Dynamic Load (Ca) | 44000 N |
| Static Load (C0a) | 97000 N |
| Fatigue Load Rating (Cu) | 4400 N |
| Limiting Speed | 5500 1/min |
| Reference Speed | 6900 1/min |
