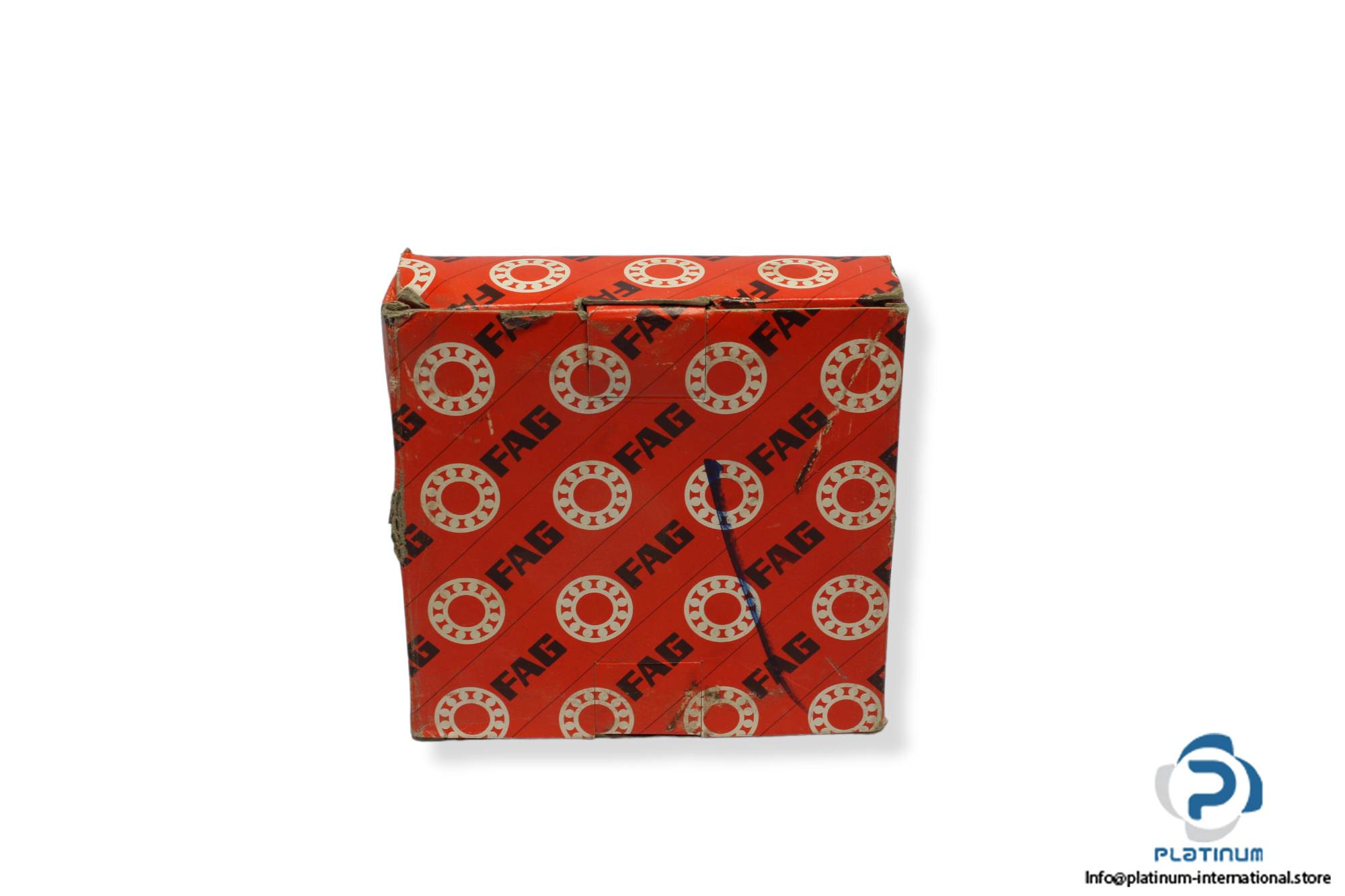

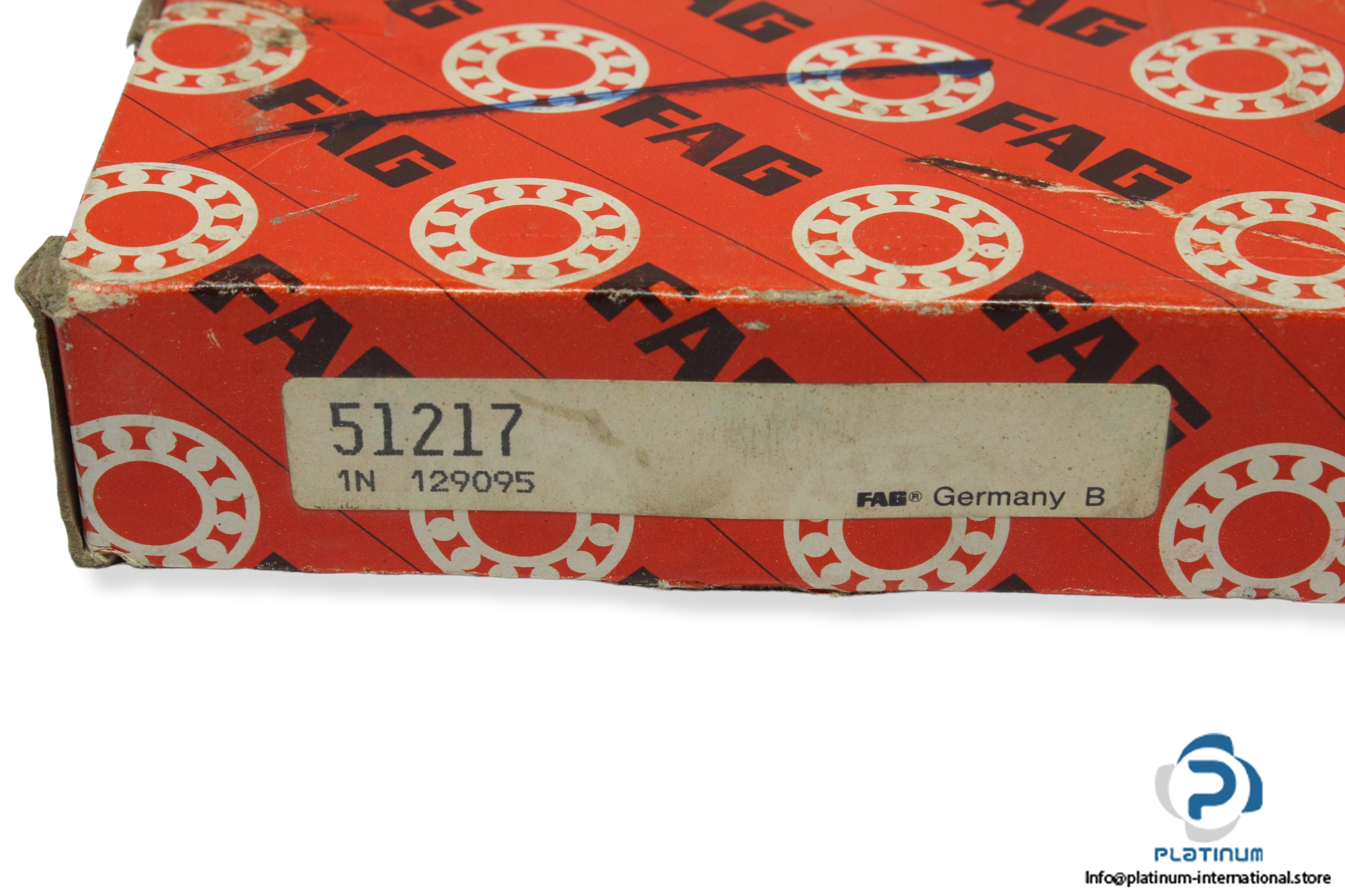

FAG 51217 Axial Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type:  Axial Deep Groove Ball Bearing single direction

Model: 51217

Dimensions:

Inner diameter shaft washer d: 85 mm

Outer diameter housing washer D: 125 mm

Height T: 31 mm

Dynamic load rating, axial: 98000 N

Static load rating, axial: 250000 N

Fatigue load limit, axial: 11200 N

Limiting speed: 3250 RPM

Reference speed: 3850 RPM

Operating temperature: -30 … +150 °C

Cage material: Steel
