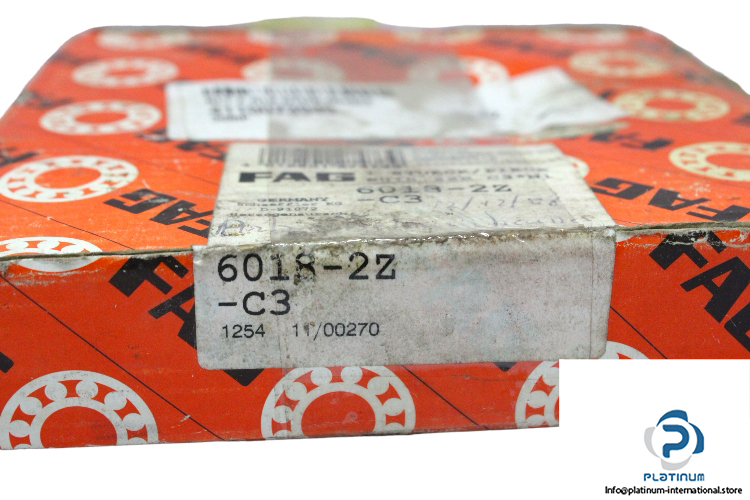

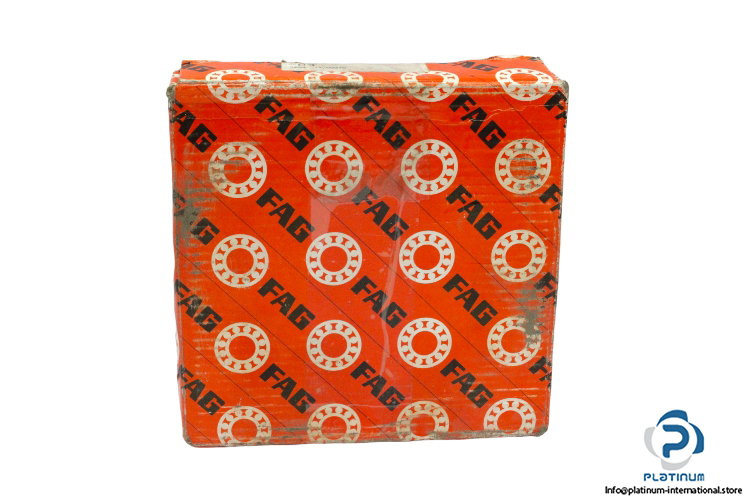

FAG 6018-2Z-C3 Deep Groove Ball Bearing

Manufacturer: schaeffler FAG

Type: Deep Groove Ball Bearing

Model: 6018 2Z-C3

Replaces: 6018.2ZR.C3

Dimensions

Bore Diameter d: 90 mm

Outer diameter D: 140 mm

Width B: 24 mm

Dynamic C_r: 62000 N

Static C_0r: 49500 N

Fatigue load limit: 3000 N

Limiting speed: 5600 rpm

Reference speed: 5600 rpm

Cage: steel sheet metal

Sealing: 2Z, Non-contact shield on both sides

Radial internal clearance: C3
