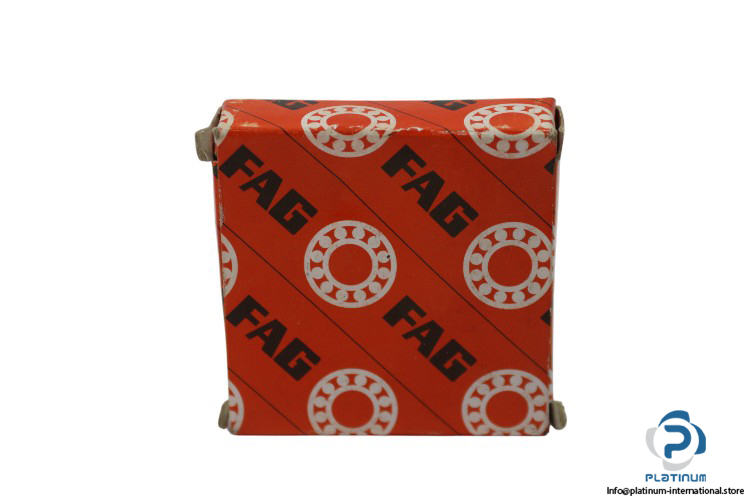

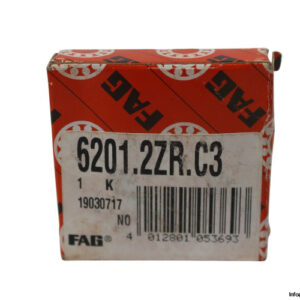

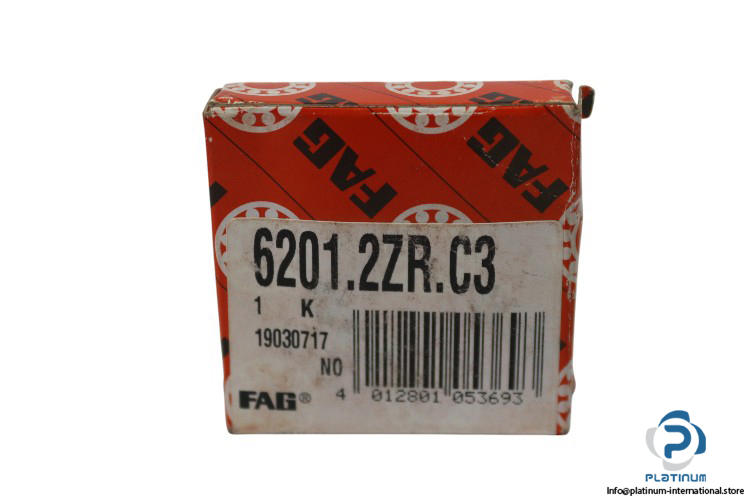

FAG 6201.2ZR.C3 Deep Groove Ball Bearing
New
In stock8 unitsReady to ship
Deep Groove Ball Bearing
The FAG 6201 2ZR C3 deep groove ball bearing offers high-speed capabilities and reliable performance in demanding applications. It features a non-contact shield and C3 radial clearance for optimal function in a variety of conditions.122ZR326201BallbearingboreC3ClearanceDeepdiameterFagGrooveHigh-SpeedIndustrialmmNon-ContactOuterradialShield
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6201 2ZR C3 “ Deep Groove Ball Bearing
The FAG 6201 2ZR C3 deep groove ball bearing is a precision-engineered component designed for high-speed applications and reliable performance in a wide range of industrial systems. It features a non-contact shield and C3 radial internal clearance for enhanced efficiency.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6201 2ZR C3
| Bore Diameter (d) | 12 mm |
| Outer Diameter (D) | 32 mm |
| Width (B) | 10 mm |
| Dynamic Load Rating (Cr) | 8,000 N |
| Static Load Rating (C0r) | 3,100 N |
| Fatigue Load Limit | 213 N |
| Limiting Speed | 31,500 1/min |
| Reference Speed | 24,600 1/min |
| Cage | Steel sheet metal |
| Sealing | 2ZR, non-contact shield on both sides |
| Radial Internal Clearance | C3 |
| Operating Temperature | -20 to 120 degrees Celsius |
