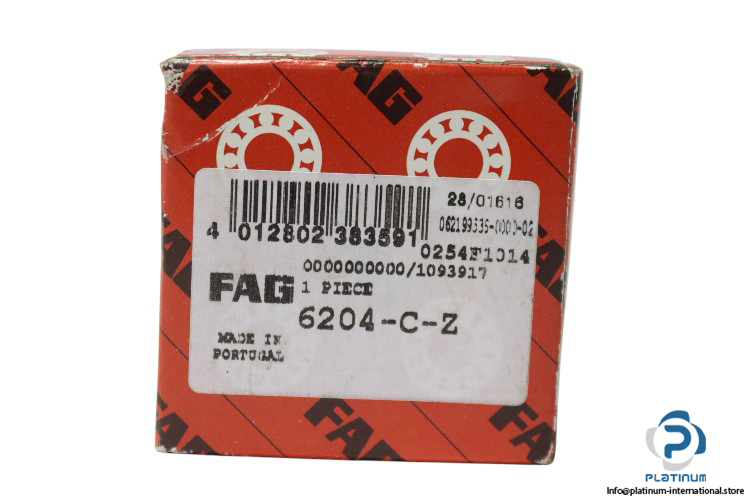

FAG 6204-C-Z Deep Groove Ball Bearing
New
In stock4 unitsReady to ship
Deep Groove Ball Bearing
FAG 6204-C-Z Deep Groove Ball Bearing features a 20 mm bore diameter and 47 mm outer diameter, providing high dynamic load capacity and high-speed performance in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6204-C-Z Deep Groove Ball Bearing
The FAG 6204-C-Z Deep Groove Ball Bearing offers high precision and reliability for a wide range of industrial applications. With non-contact shields and a steel sheet metal cage, it ensures durability and optimal performance in demanding conditions.
Manufacturer: FAG
Model: 6204-C-Z
Type: Deep Groove Ball Bearing
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 14 mm |
| Dynamic Load Rating (Cr) | 14,700 N |
| Static Load Rating (C0r) | 6,600 N |
| Fatigue Load Limit | 455 N |
| Limiting Speed | 24,300 1/min |
| Reference Speed | 18,100 1/min |
| Cage | Steel Sheet Metal |
| Sealing | Z, Non-Contact Shield on One Side |
