FAG 6208 2Z Deep Groove Ball Bearing
New
In stock2 unitsReady to ship
Deep Groove Ball Bearing
The FAG 6208 2Z is a durable deep groove ball bearing with a 40 mm bore and 80 mm outside diameter. Featuring non-contact shields on both sides and a steel sheet metal cage, it supports speeds up to 10,400 rpm.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

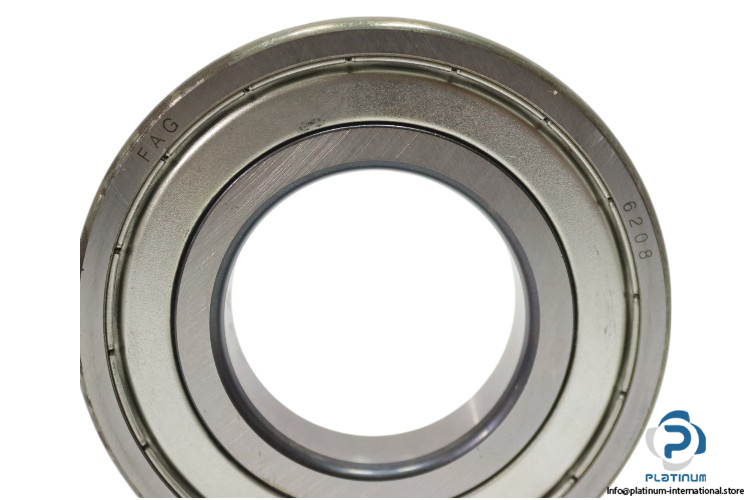

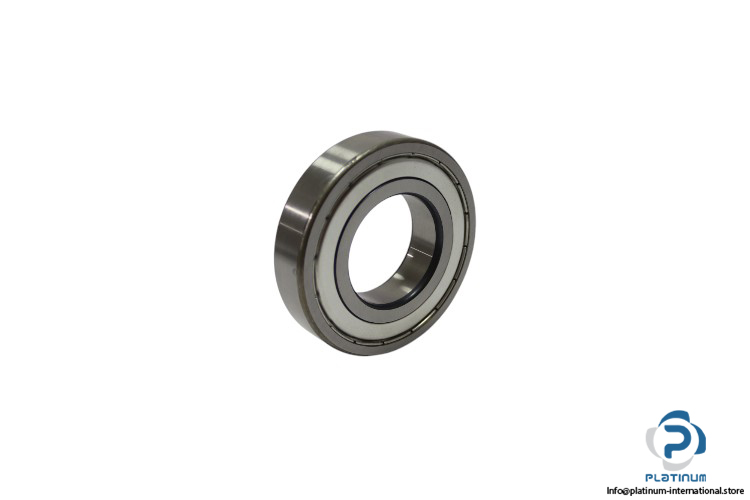

FAG 6208 2Z Deep Groove Ball Bearing
The FAG 6208 2Z is a high-performance deep groove ball bearing designed for high-speed applications with reliable load capacity. Equipped with 2Z non-contact shields on both sides and a steel sheet metal cage, it provides excellent sealing, durability, and smooth operation in demanding environments.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6208 2Z
| Bore Diameter (d) | 40 mm |
| Outside Diameter | 80 mm |
| Bearing Width (B) | 18 mm |
| Basic Dynamic Load Rating | 31,000 N |
| Basic Static Load Rating | 17,800 N |
| Fatigue Load Limit | 1,080 N |
| Reference Speed | 9,300 r/min |
| Limiting Speed | 10,400 r/min |
| Cage Type | Steel Sheet Metal |
| Sealing | 2Z “ Non-contact Shield on Both Sides |
