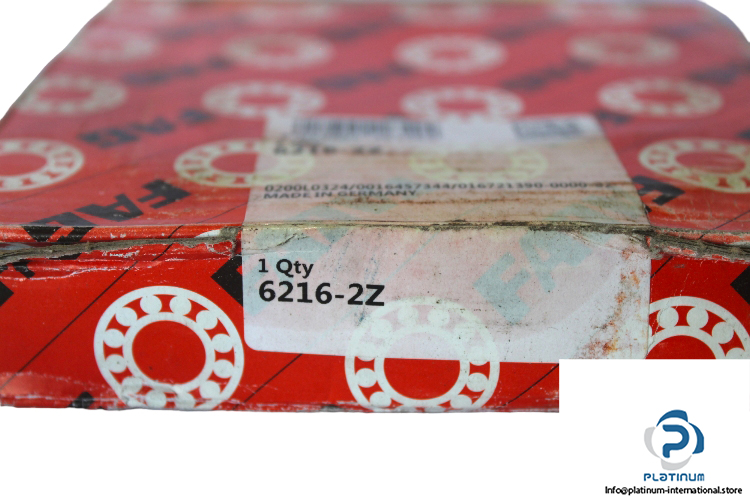

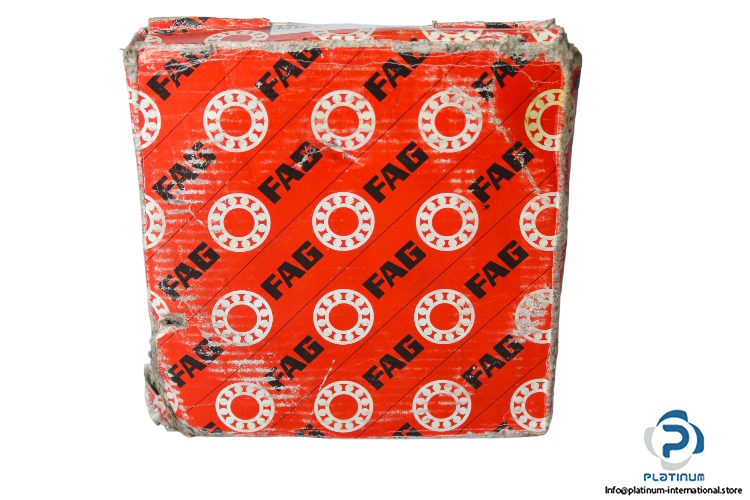

FAG 6216-2Z Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type: Deep Groove Ball Bearing

Model: 6216 2Z

Replaces: 6216.2Z, 6216.2ZR



Dimensions

Bore Diameter d: 80 mm

Outer diameter D: 140 mm

Width B: 26 mm

Chamfer dimension r_{1,2 min}: 2 mm

Basic load ratings:

Dynamic C_r: 77000 N

Static C_0r: 55000 N

Fatigue load rating: 3650 N

Limiting speed: 6200  rpm

Reference speed: 5500 rpm

Seal: Non-contact shield on both sides

Cage: steel sheet metal
