FAG 6305 2Z Deep Groove Ball Bearing
New
In stock6 unitsReady to ship
Deep Groove Ball Bearing
The FAG 6305 2Z is a precision deep groove ball bearing with 25 mm bore, steel sheet metal cage, and 2Z non-contact shields. Designed for high-speed operation up to 13700 rpm and long-lasting performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

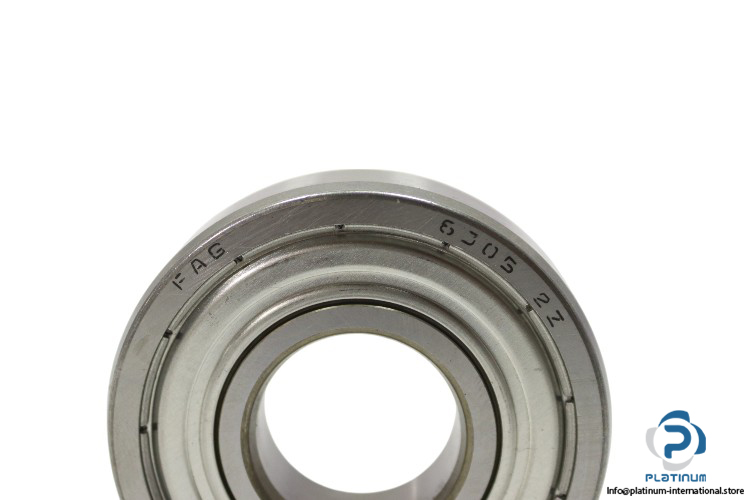

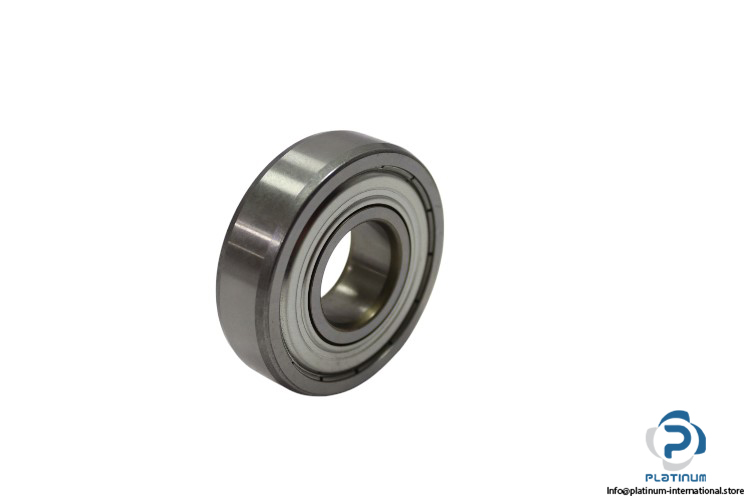

FAG 6305 2Z Deep Groove Ball Bearing
The FAG 6305 2Z is a high-quality deep groove ball bearing designed for reliable performance in high-speed and high-load applications. Featuring steel sheet metal cage and 2Z non-contact shields on both sides, it ensures durability, low maintenance, and protection from contaminants in demanding environments.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6305 2Z
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 17 mm |
| Dynamic Load Rating (Cr) | 23800 N |
| Static Load Rating (C0r) | 11500 N |
| Fatigue Load Limit | 780 N |
| Limiting Speed | 13700 rpm |
| Reference Speed | 12300 rpm |
| Sealing | 2Z, non-contact shield on both sides |
| Cage | Steel sheet metal |
