FAG 6314-M-C3 Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
FAG 6314 M.C3 deep groove ball bearing with brass cage and C3 clearance, designed for high-speed and heavy-duty industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

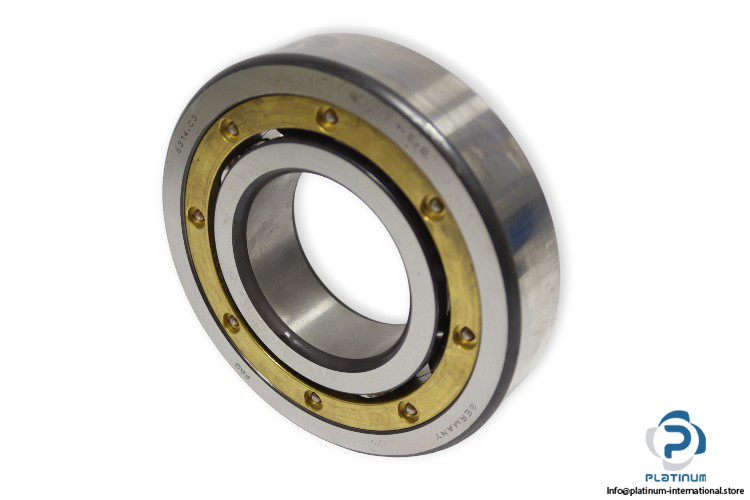

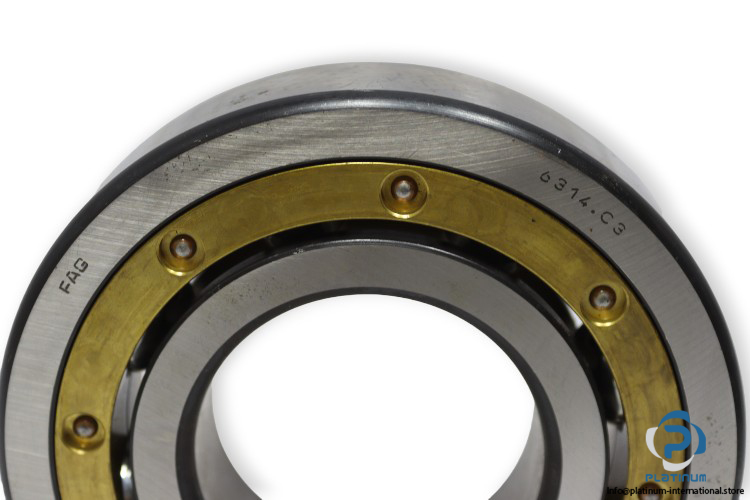

Schaeffler FAG 6314 M.C3 Deep Groove Ball Bearing
The Schaeffler FAG 6314 M.C3 Deep Groove Ball Bearing is a high-performance bearing designed for durability, high-speed operation, and reliable load handling. Featuring a solid brass cage and C3 radial internal clearance, this bearing ensures smooth rotation, reduced friction, and extended service life in demanding industrial applications.
Manufacturer: Schaeffler / FAG
Type: Deep Groove Ball Bearing
Model: 6314 M.C3
Ideal choice for high-speed rotating machinery requiring durability and consistent performance under load.
| Bore Diameter d | 70 mm |
| Outer Diameter D | 150 mm |
| Width B | 35 mm |
| Dynamic Load Rating (Cr) | 115000 N |
| Static Load Rating (C0r) | 69000 N |
| Fatigue Load Limit | 4450 N |
| Limiting Speed | 6800 rpm |
| Reference Speed | 6100 rpm |
| Radial Internal Clearance | C3 |
| Cage | M, solid brass cage, rolling element guided |
