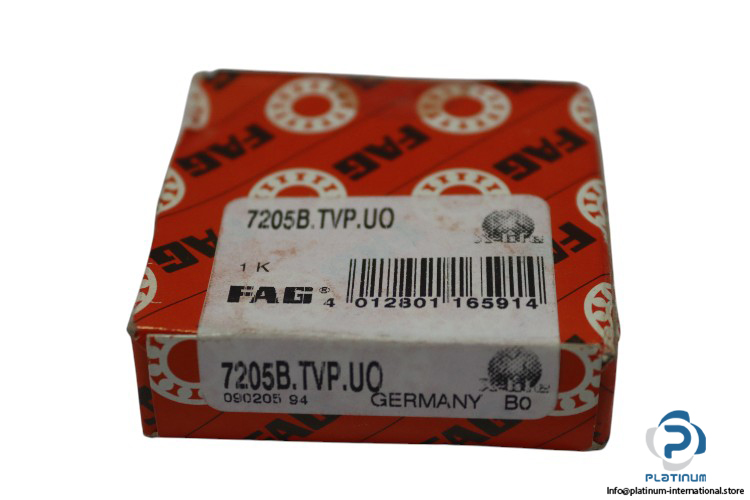

FAG 7205B.TVP.UO Angular Contact Ball Bearing
New
In stock2 unitsReady to ship
Angular Contact Ball Bearing
FAG 7205B.TVP.UO Angular Contact Ball Bearing features a 25 mm bore diameter, 52 mm outer diameter, and 15 mm width. It is designed for high-speed applications with a 40° contact angle and a solid polyamide cage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 7205B.TVP.UO Angular Contact Ball Bearing
The FAG 7205B.TVP.UO Angular Contact Ball Bearing is designed to provide reliable and efficient performance under high-speed and high-load conditions. With a 40° contact angle and a glass-fiber reinforced polyamide cage, it is well-suited for precision applications in demanding environments.
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7205B.TVP.UO
| Design | UO, Bearing set clearance-free in O or X arrangement |
| Bore Diameter | 25 mm |
| Outer Diameter | 52 mm |
| Width | 15 mm |
| Contact Angle | 40° |
| Dynamic Load Capacity (Cr) | 16,200 N |
| Static Load Capacity (C0r) | 9,000 N |
| Fatigue Load Rating | 620 N |
| Limiting Speed | 19,200 1/min |
| Reference Speed | 13,700 1/min |
| Cage | TVP; Solid cage made of glass-fiber reinforced polyamide PA66 |
