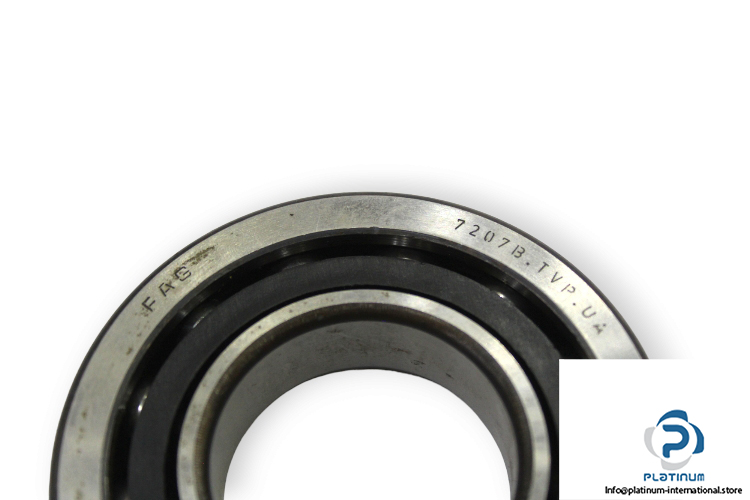

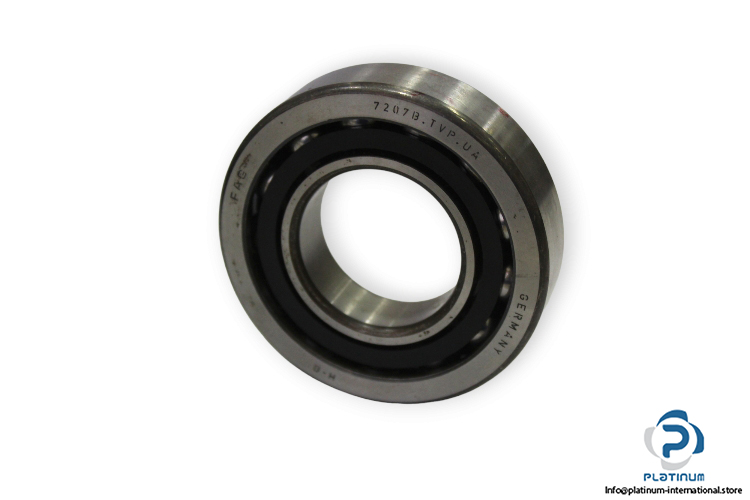

FAG 7207B.TVP.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7207 B.TVP.UA

Replaces: 7207-B-XL-TVP-UA, 7207-B-TVP-UA

Dimensions

Bore Diameter d: 35 mm

Outer diameter D: 72 mm

Width B: 17 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 30000 N

Static C_0r: 19000 N

Fatigue load limit C_ur: 1320 N

Limiting speed: 13400 rpm

Reference speed: 9600 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
