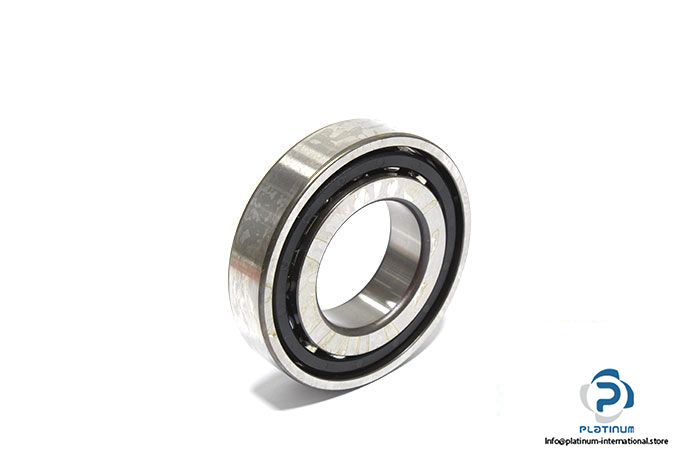

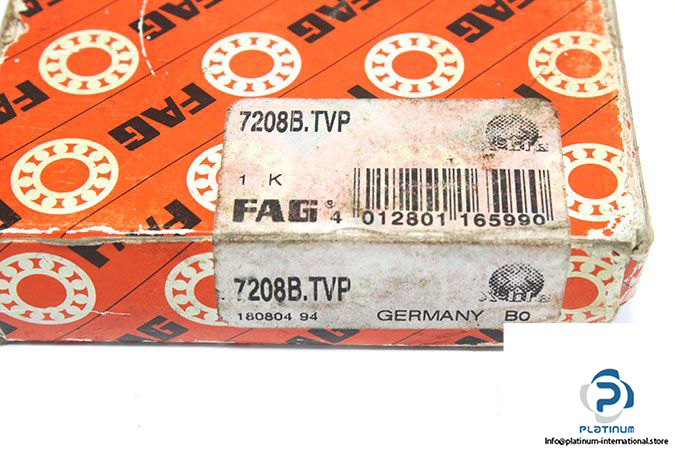

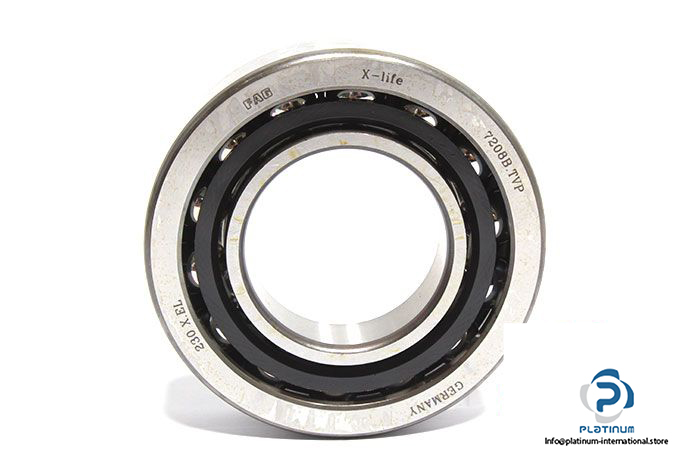

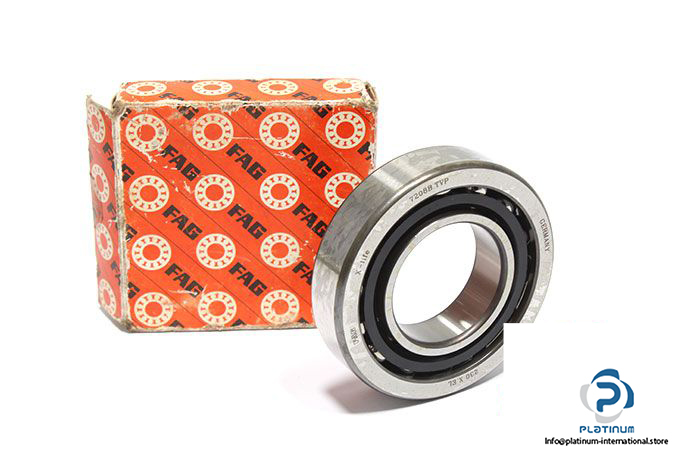

FAG 7208B.TVP Angular Contact Ball Bearing
Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7208B TVP
Bore Diameter: 40 mm
Outer diameter: 80 mm
Width: 18 mm
Chamfer rmin: 1 mm
Contact Angle: 40°
Basic load ratings:
Dynamic Cr: 36,000 N
Static C0r: 23,500 N
Fatigue load rating: 1630 N
Limiting speed: 11900 1/min
Reference speed: 8,600 1/min
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66, ball guided
Design variant: B
Tolerance class: Class6 (P6), better than PN
