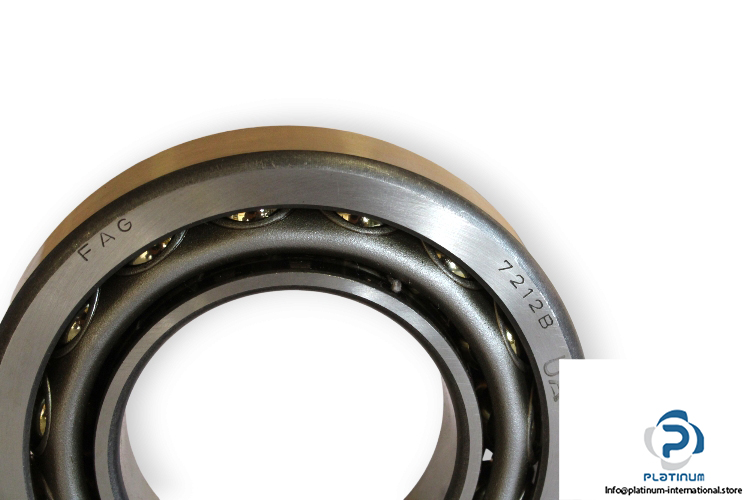

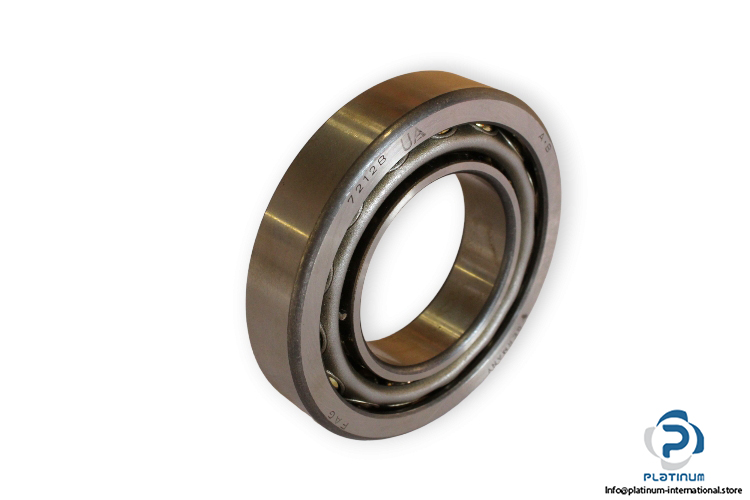

FAG 7212B.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7212 B.UA



Dimensions

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 22 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 62000 N

Static C_0r: 45000 N

Fatigue load limit C_ur: 3150 N

Limiting speed: 8300 rpm

Reference speed: 6200 rpm

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance

Cage: JP, steel sheet metal
