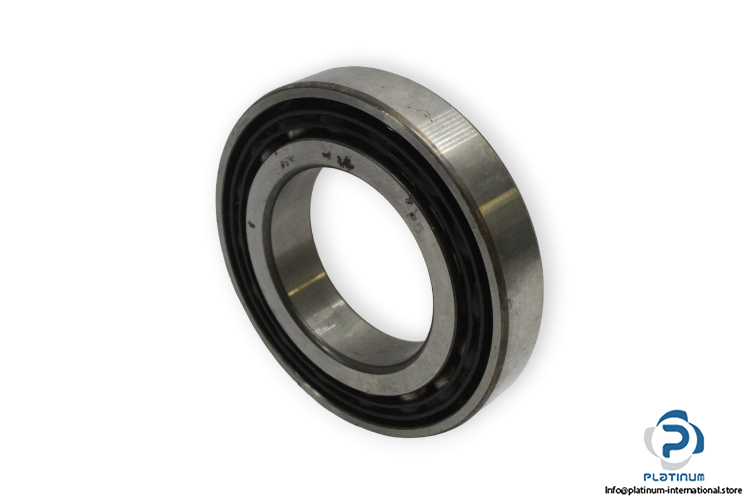

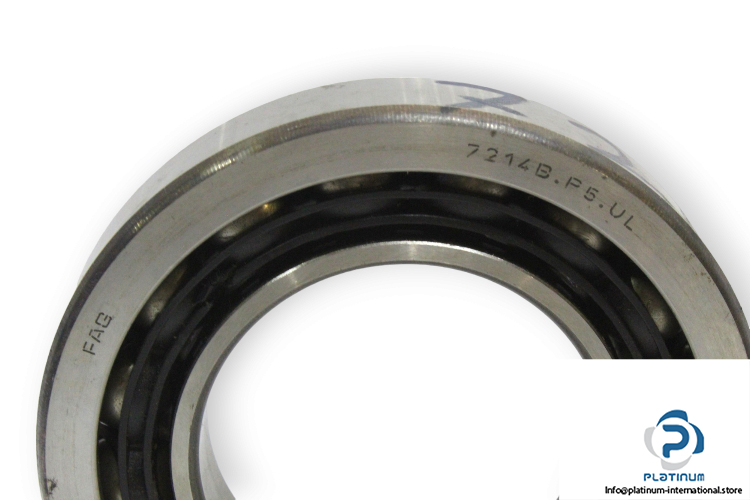

FAG 7214 B.P5.UL Angular Contact Ball Bearing
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7214B.P5.UL
Dimensions
Bore Diameter d: 70 mm
Outer diameter D: 125 mm
Width B: 24 mm
Basic load ratings:
Dynamic Cr: 74000 N
Static C0r: 62000 N
Fatigue load limit Cur: 4300 N
Contact Angle: 40°
Limiting speed: 7200 rpm
Reference speed: 5400 rpm
Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66
Tolerance class: P5, Class 5 better than P6
Bearing with matched conditions for fitting in pairs: UL, bearing set with light preload
