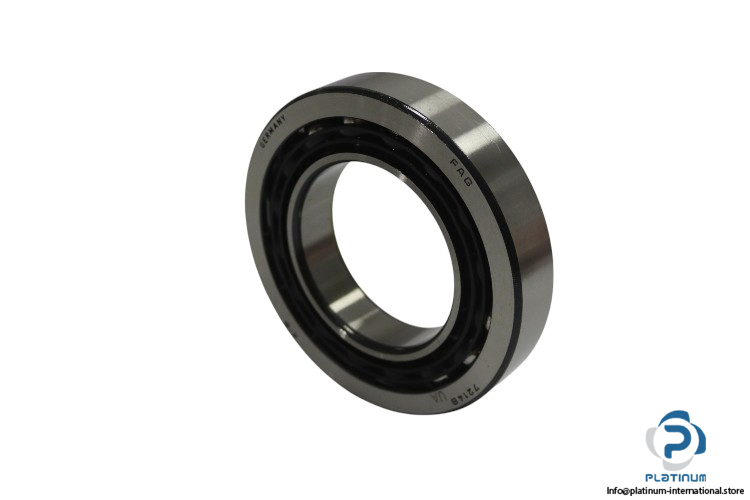

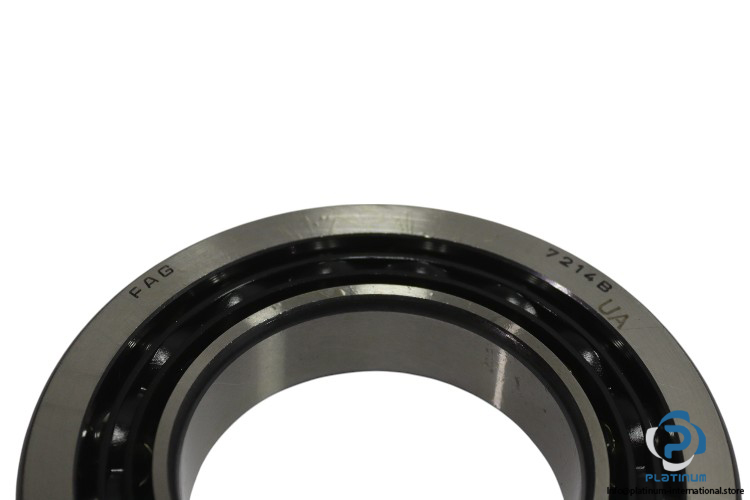

FAG 7214B.TVP.UA Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing
FAG 7214B.TVP.UA Angular Contact Ball Bearing features a 70 mm bore diameter and 125 mm outer diameter, designed for high-speed and high-precision applications with a 40° contact angle and solid glass-fiber reinforced polyamide cage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 7214B.TVP.UA Angular Contact Ball Bearing
The FAG 7214B.TVP.UA Angular Contact Ball Bearing is designed for high-precision applications requiring a high contact angle and robust load capacities. This bearing features a solid cage made of glass-fiber reinforced polyamide for optimal performance.
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7214B.TVP.UA
| Design | UA, bearing set with small axial internal clearance |
| Bore Diameter | 70 mm |
| Outer Diameter | 125 mm |
| Width | 24 mm |
| Contact Angle | 40° |
| Dynamic Load Rating (Cr) | 74,000 N |
| Static Load Rating (C0r) | 62,000 N |
| Fatigue Load Rating | 4,300 N |
| Limiting Speed | 7,200 1/min |
| Reference Speed | 5,400 1/min |
| Cage | TVP; Solid cage made of glass-fiber reinforced polyamide PA66 |
