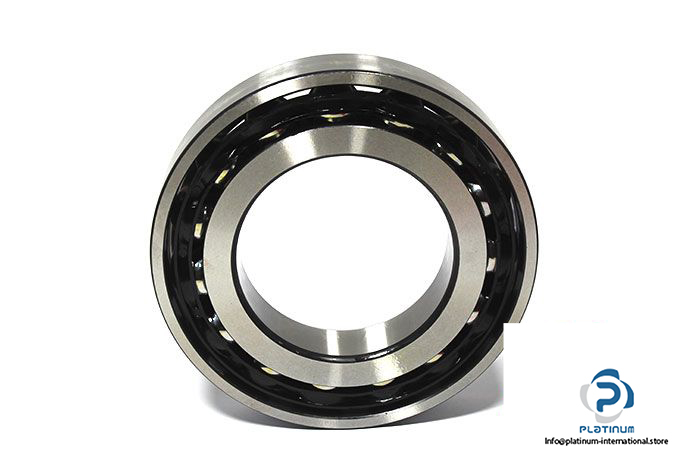

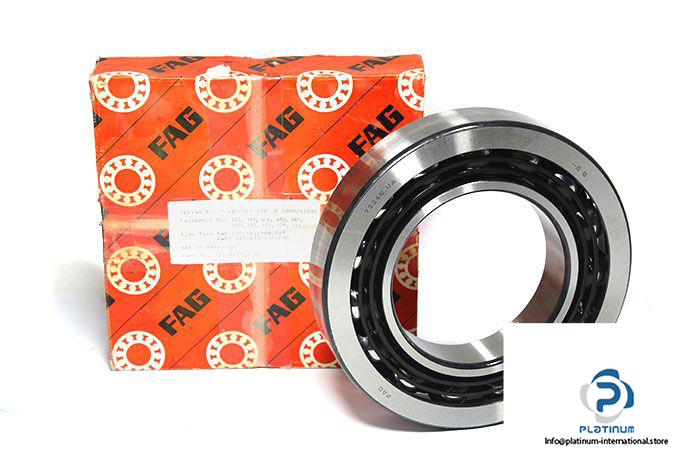

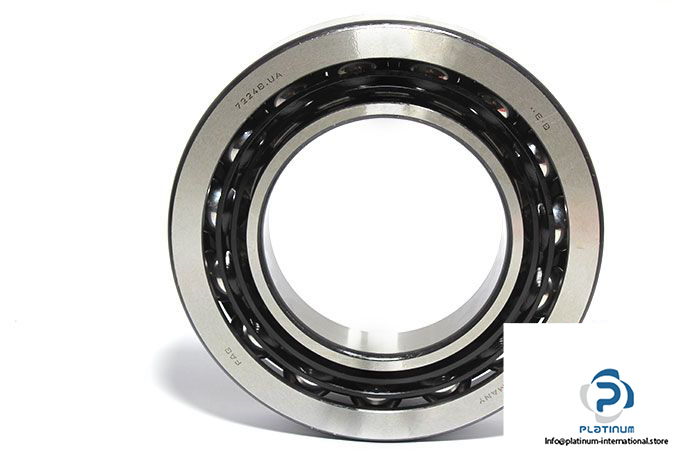

FAG 7224B.TVP.UA Angular Contact Ball Bearing

Name: FAG 7224B.TVP.UA ANGULAR CONTACT BALL BEARING
SKU: 979485
Availability: LimitedAvailability

fag-7224B.TVP.UP-angular-contact-ball-bearing

fag-7224b-tvp-up-angular-contact-ball-bearing-2

fag-7224b-tvp-up-angular-contact-ball-bearing-3

fag-7224b-tvp-up-angular-contact-ball-bearing-4

fag-7224b-tvp-up-angular-contact-ball-bearing-5

New

In stock20 unitsReady to ship

Manufacturer: FAG Type: Angular Contact Ball Bearing Model: 7224B TVP UA Replaces: 7224-B-TVP-UA, 7224-B-XL-TVP-UA

Manufacturer

FAG

SKU

979485

Category

Angular Contact

Condition

New

120 Angular Ball bearing bearings Contact Fag mm

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7224B TVP UA
Replaces: 7224-B-TVP-UA, 7224-B-XL-TVP-UA

Dimensions
Bore Diameter d: 120 mm
Outer diameter D: 215 mm
Width B: 40 mm
Chamfer r_min: 2.1 mm
Basic load ratings:
Dynamic C_r: 182000 N
Static C_0r: 178000 N
Fatigue load limit C_ur: 9600 N
Contact Angle: 40°
Limiting speed: 4000 rpm
Reference speed: 3700 rpm
Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66
