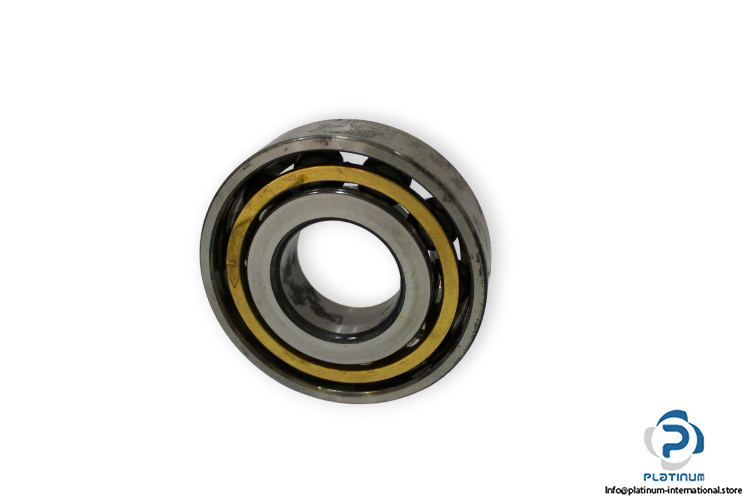

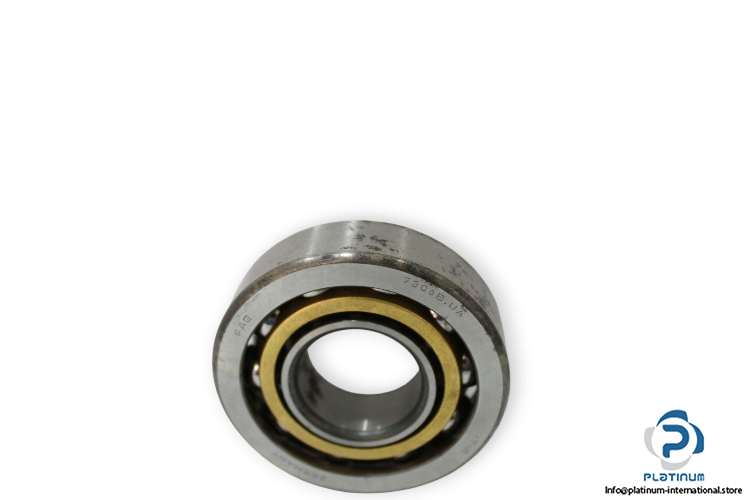

FAG 7306B.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7306 B.UA



Dimensions

Bore Diameter d: 30 mm

Outer diameter D: 72 mm

Width B: 19 mm

Basic load ratings:

Dynamic C_r: 35500 N

Static C_0r: 20100 N

Fatigue load limit C_ur: 1390 N

Contact Angle: 40°

Limiting speed: 17600 rpm

Reference speed: 8700 rpm

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance

Cage: MP, solid brass cage, ball guided

Tolerance class:P6, Class6 (P6), better than PN
