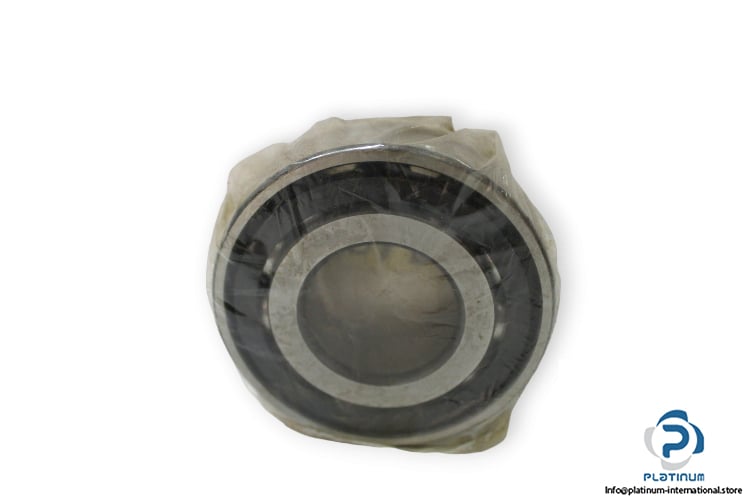

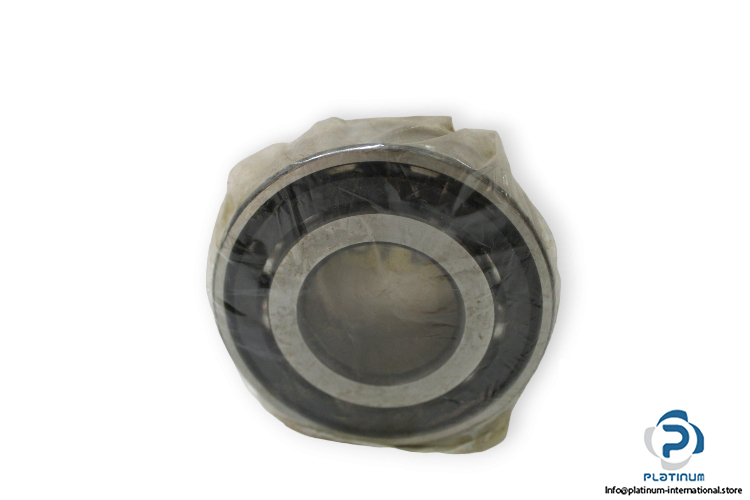

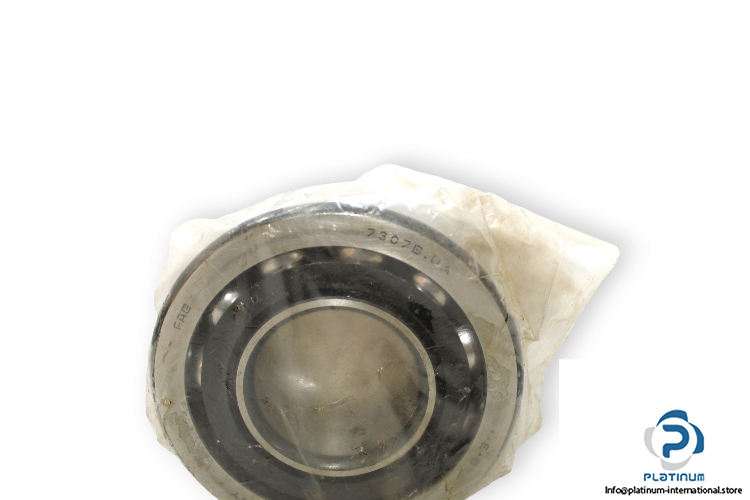

FAG 7307B.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7307 B.UA



Dimensions

Bore Diameter d: 35 mm

Outer diameter D: 80 mm

Width B: 21 mm

Basic load ratings:

Dynamic C_r: 45500 N

Static C_0r: 27500 N

Fatigue load limit C_ur: 1910 N

Contact Angle: 40°

Limiting speed: 11900 rpm

Reference speed: 7900 rpm

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class:P6, Class6 (P6), better than PN
