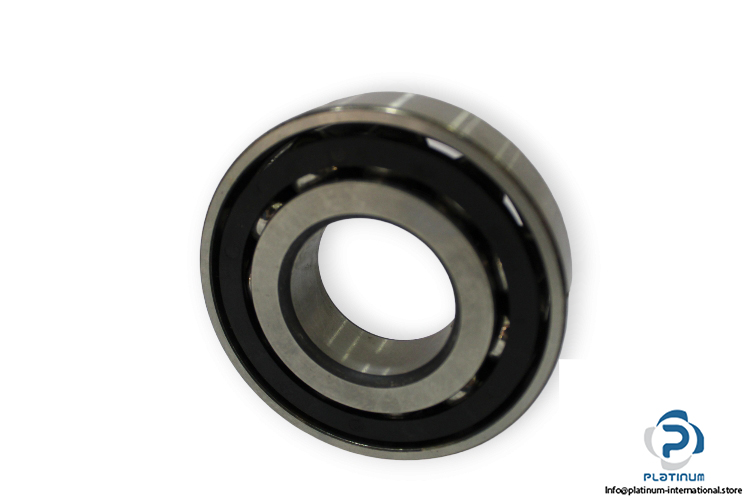

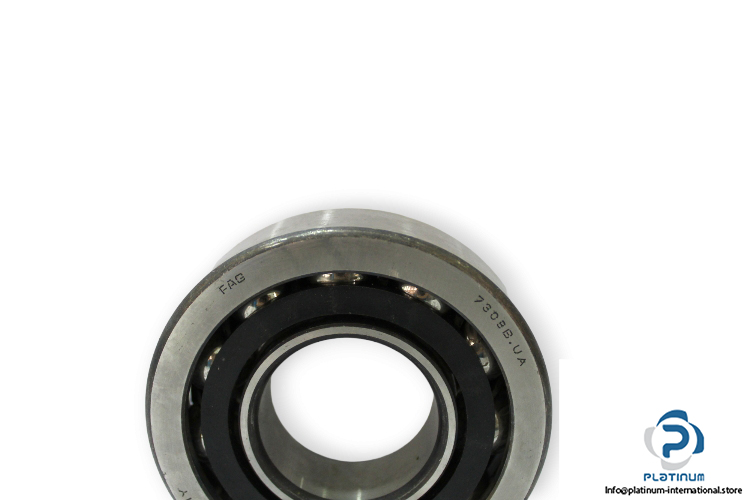

FAG 7308B.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7308 B.UA



Dimensions

Bore Diameter d: 40 mm

Outer diameter D: 90 mm

Width B: 23 mm

Basic load ratings:

Dynamic C_r: 57000 N

Static C_0r: 34500 N

Fatigue load limit C_ur: 2390 N

Contact Angle: 40°

Limiting speed: 10400 rpm

Reference speed: 7100 rpm

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class:P6, Class6 (P6), better than PN
