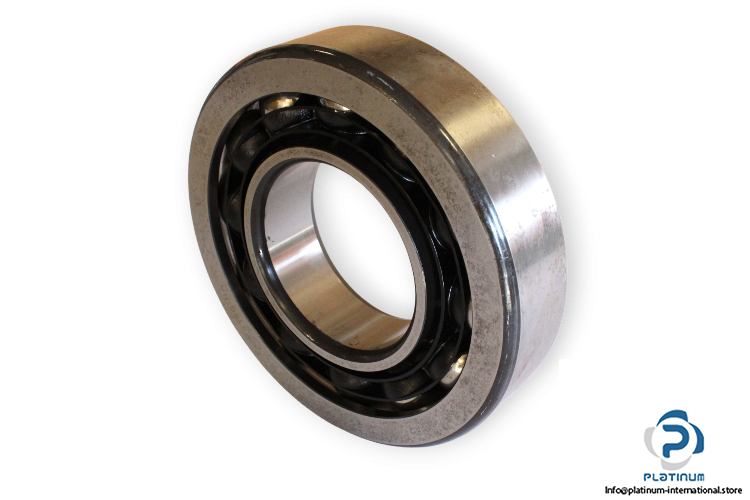

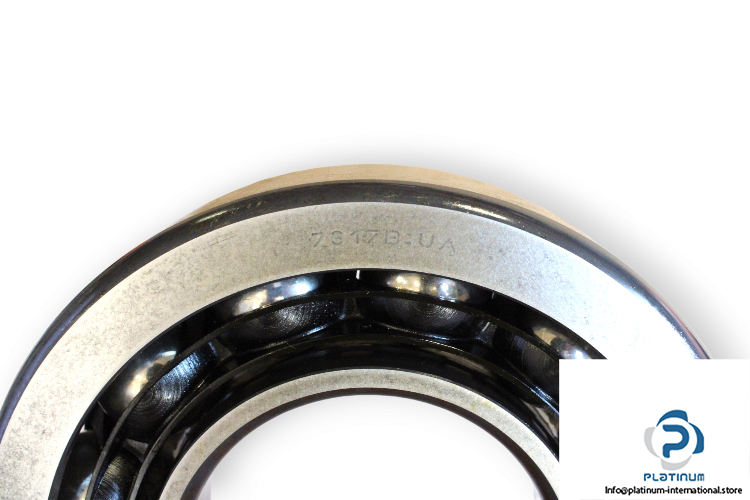

FAG 7317B.UA Angular Contact Ball Bearing

Name: FAG 7317B.UA ANGULAR CONTACT BALL BEARING
SKU: 1005624
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

Manufacturer: FAG Type: Angular Contact Ball Bearing Model: 7317 B.UA

Manufacturer

FAG

SKU

1005624

Category

Angular Contact

Condition

Used

‎85 Angular Ball bearing bearings Contact Fag mm

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7317 B.UA

Dimensions
Bore Diameter d: 85 mm
Outer diameter D: 180 mm
Width B: 41 mm
Basic load ratings:
Dynamic C_r: 167000 N
Static C_0r: 138000 N
Fatigue load limit C_ur: 8300 N
Contact Angle: 40°
Limiting speed: 4900 rpm
Reference speed: 4100 rpm
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Cage: solid cage made of glass-fiber reinforced polyamid PA66
