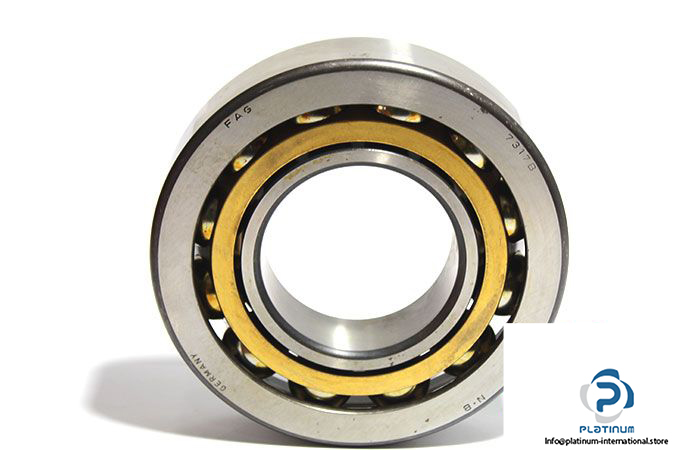

FAG 7317B‎ Angular Contact Ball Bearing

fag-7317B-angular-contact-ball-bearing
fag-7317b-angular-contact-ball-bearing-1
fag-7317b-angular-contact-ball-bearing-2
fag-7317b-angular-contact-ball-bearing-3
New
In stock3 unitsReady to ship
Manufacturer
FAG
SKU
982479
Category
Angular Contact
Condition
New
‎85AngularBallbearingbearingsContactFagmmSchaefflershaft
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing

Model: ‎7317B‎

Replaces: 7317-B-XL-MP

Part No: 7317



Bore Diameter: 85 mm

Outer diameter: 180 mm

Width: 41 mm

Basic Load ratings:

Dynamic Load Capacity Cdyn: 167 kN

Static Load Capacity C0: 138 kN

Limiting Speed: 6400 rpm

Reference Speed: 4100 rpm

Cage Material: solid brass cage, ball guided

Weight: 4.9 kg
