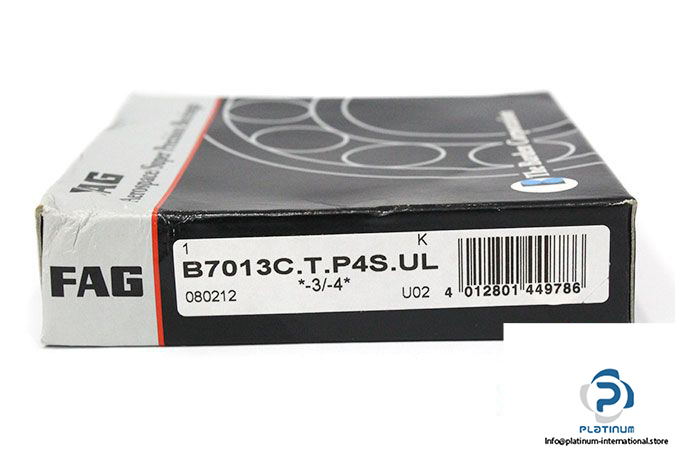

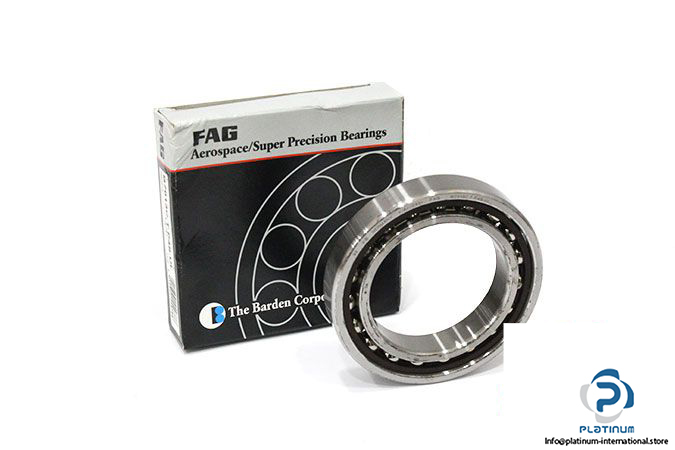

FAG B7013C.T.P4S.UL Angular Contact Ball Bearing
New
In stock6 unitsReady to ship
125,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler FAG
Type: Angular contact ball bearing (Spindle Bearing)
Model: B7013 C.T.P4S.UL
Replaces: B7013-C-T-P4S-UL, B7013C.TPA.P4.UL
Dimensions:
Bore Diameter d: 65 mm
Outer diameter D: 100 mm
Width: 18 mm
Contact angle: 15 °
Dynamic load rating: 41500 N
Static load rating: 25500 N
Fatigue load limit: 2700 N
Limiting speed for grease lubrication: 14000 RPM
Limiting speed for oil lubrication: 22000 RPM
Bearing arrangement: U; Single bearing Arrangement in any combination
Tolerance class: P4S, FAG standard better than P4 to DIN 620
Preload: L; Light
Cage material: T; Laminated fabric cage
