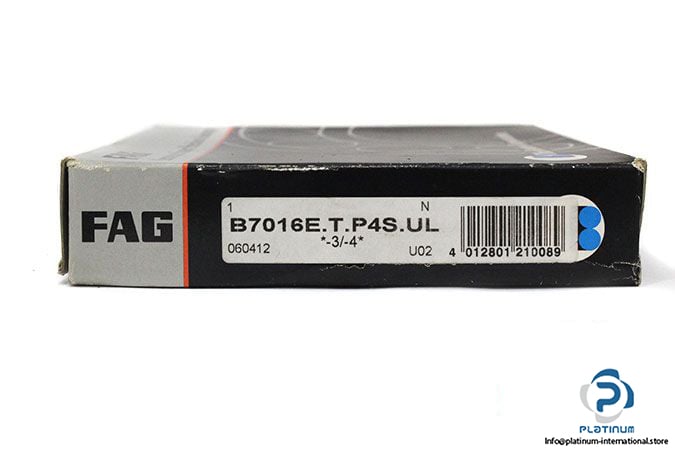

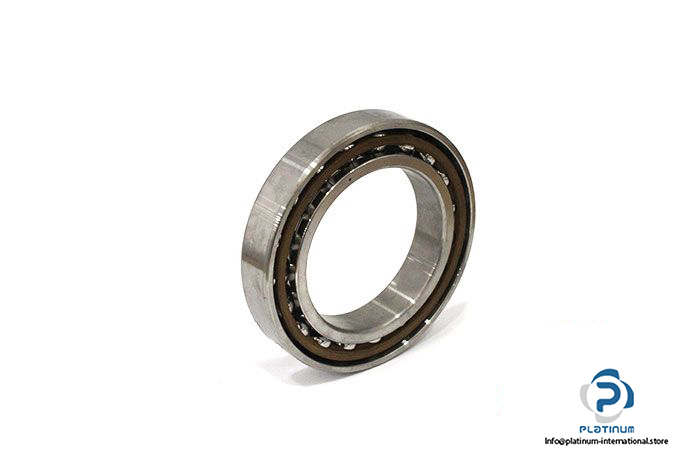

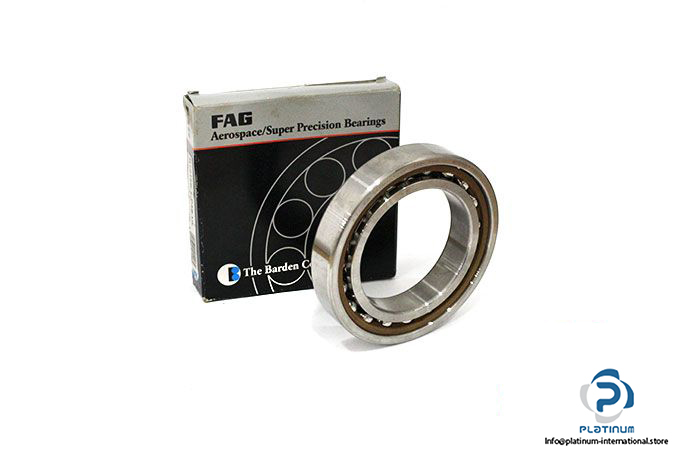

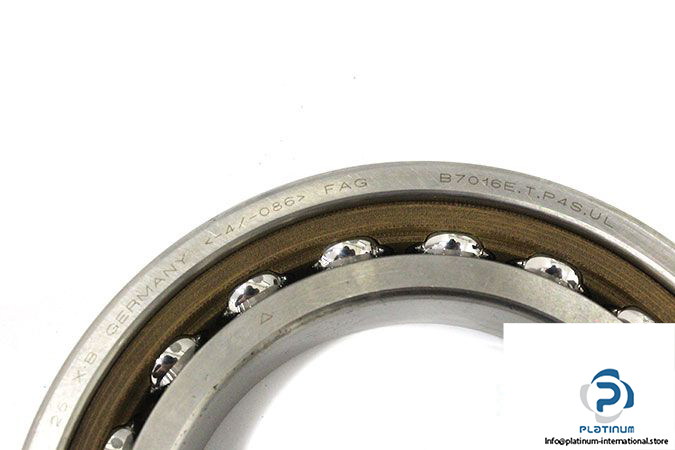

FAG B7016E.T.P4S.UL Angular Contact Ball Bearing

Manufacturer: FAG ‎

Type: ‎ Angular Contact ( spindle )Ball Bearing

Model: B7016 E T P4S UL ‎

Bore Diameter: 80 mm

Outer Diameter: 125 mm

Thickness: 22 mm

Chamfer r_min: 1.1 mm

Contact Angle: 25°

Basic load ratings:

Dynamic C_r: 61000 kN

Static C_0r: 39000 kN

Fatigue load limit: 4050 kN

Limiting speed for grease lubrication: 10000 rpm

Limiting speed for oil-air lubrication: 15000 rpm

Weight: 0.86 kg
