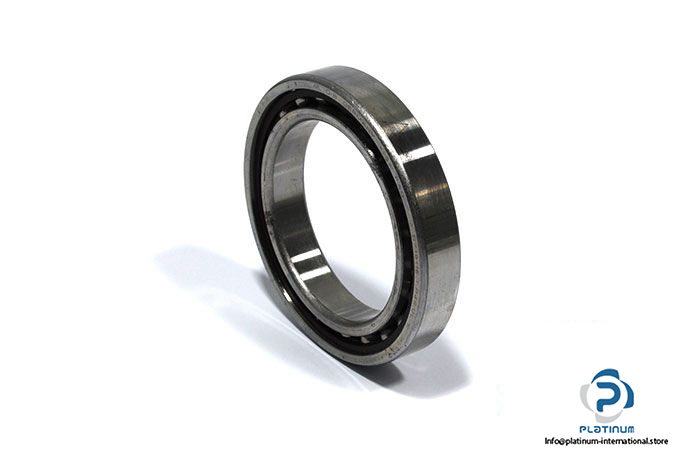

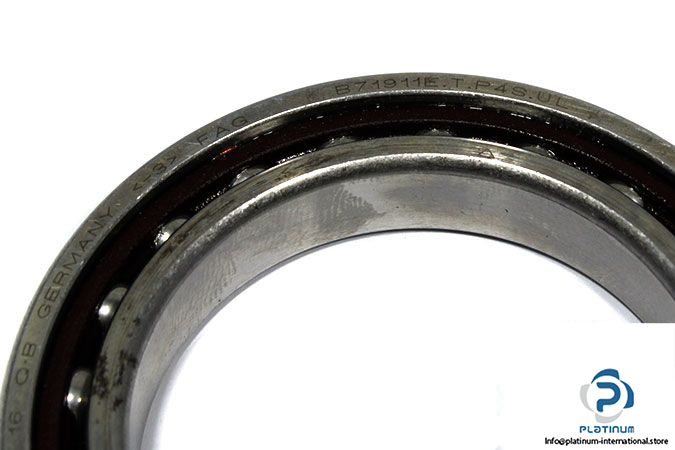

FAG B71911E.T.P4S.UL Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing (Spindle Bearing)

Model: B71911 E.T.P4S.UL

Replaces: B71911-E-T-P4S-UL, B71911E.TPA.P4.UL



Dimensions:

Bore Diameter d: 55 mm

Outer diameter D: 80 mm

Width: 13 mm

Contact angle: 25 °

Dynamic load rating: 22200 N

Static load rating: 13700 N

Fatigue load limit: 1450 N

Limiting speed for grease lubrication: 15000 RPM

Limiting speed for oil lubrication: 24000 RPM

Tolerance class: P4S

Cage material: Laminated fabric cage
