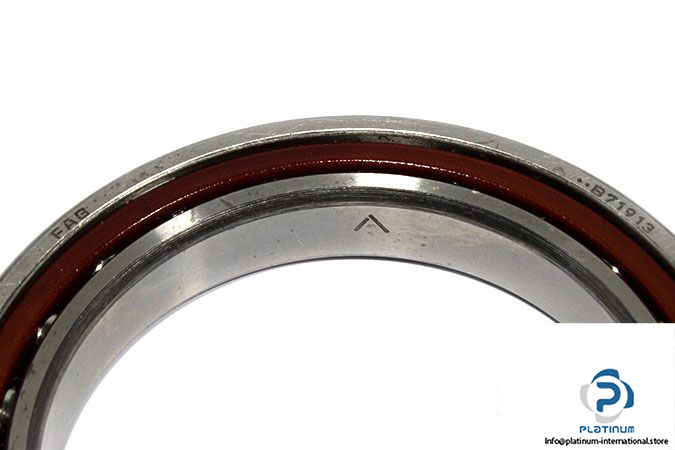

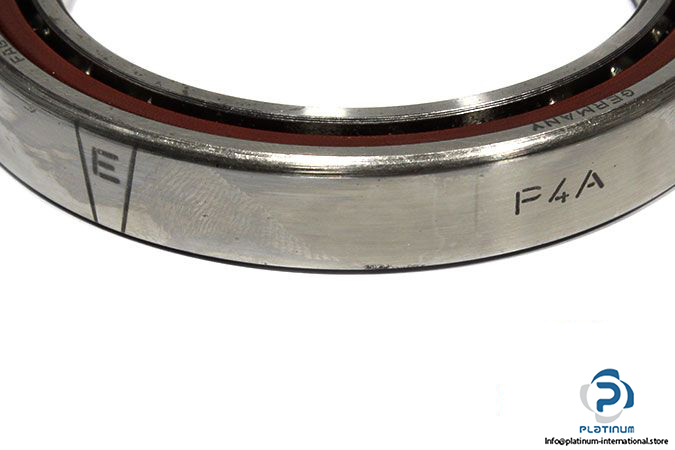

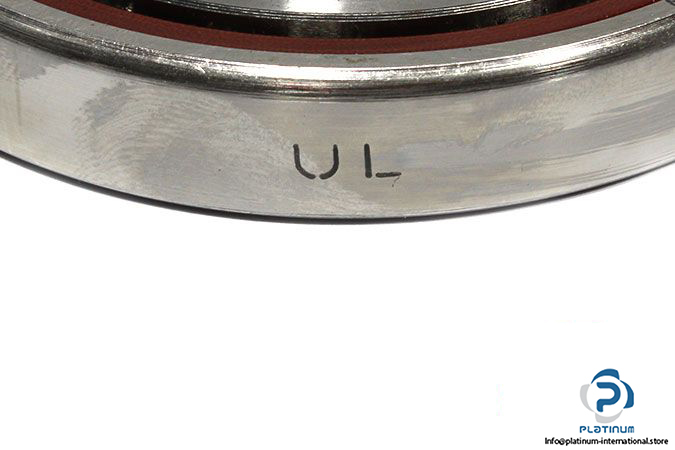

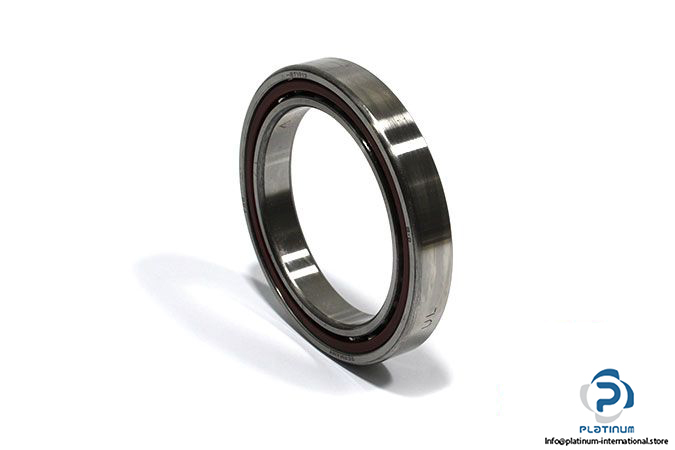

FAG B71913 E.T.P4A.UL Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing (Spindle Bearing)

Model: B71913E.T.P4A.UL

Replaces: B71913E.T.P4S.UL, B71913E.TPA.P4.UL, B71913-E-T-P4S-UL

Dimensions:

Bore Diameter d: 65 mm

Outer diameter D: 90 mm

Width: 13 mm

Contact angle: 25 °

Dynamic load rating: 23700 N

Static load rating: 16000 N

Fatigue load limit: 1690 N

Limiting speed for grease lubrication: 13000 RPM

Limiting speed for oil lubrication: 20000 RPM

Tolerance class: P4S

Cage material: Laminated fabric cage
